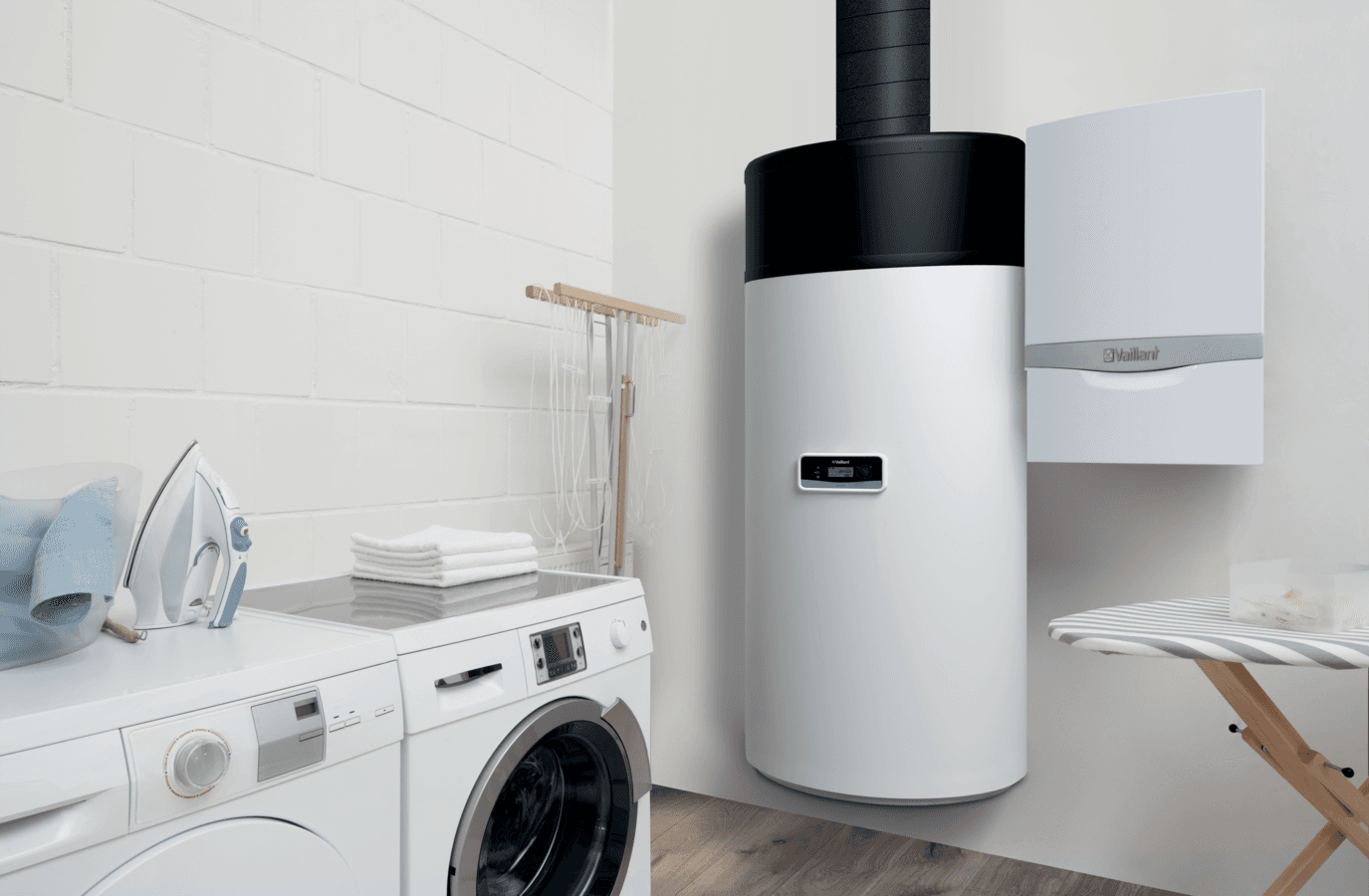

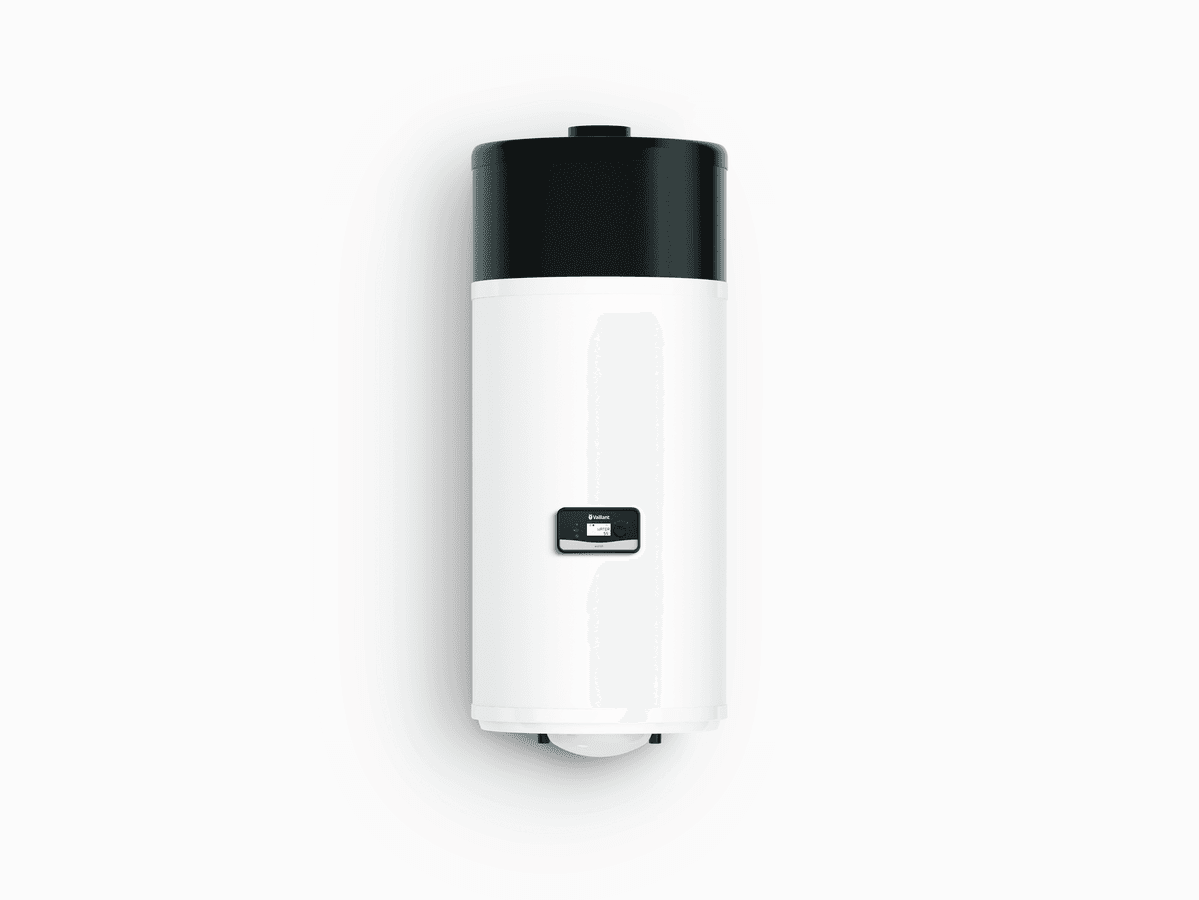

DHW Heat Pump Air-to-WateraroSTOR VWL B 80-150l

Compact wall-hung hot water heat pump – powered by renewable energy.

Convincingly efficient, delightfully quiet
Hot water comfort for small families
Compact design, quick installation

Whether you’re modernising your home, building a new one, or living in an apartment, the aroSTOR hot water heat pump lets you harness renewable energy from the air for an eco-friendly and efficient hot water supply. Quiet and highly efficient, it transforms 1 kWh of electricity into more than 3 kWh of heat energy for water heating. When combined with a photovoltaic system for self-generated electricity, you can further reduce both your carbon footprint and your energy costs. Compact, wall-mounted, and featuring a durable stainless steel tank, the aroSTOR meets the needs of families of two to four people — providing reliable comfort while saving space and energy.

Ideal for:

Hot water

Technical data table overline

Technical data table headline

aroSTOR
VWL B 100/5	VWL B 150/5	VWL B 270/5

ErP

ErP Water Heater Energy Efficiency Class Of Water Heater	ErP Water Heater Energy Efficiency Class Of Water Heater
ErP Water Heating Energy Efficiency	ErP Water Heating Energy Efficiency	99 %	104 %	130 %

aroSTOR
VWL B 100/5	VWL B 150/5	VWL B 270/5

Power Output and Efficiency

Heat Output / Power Consumption / COP for A7/W55	Heat Output / Power Consumption / COP for A7/W55	1,22 kW / 0,38 kW / 3,19	1,22 kW / 0,38 kW / 3,19	1,19 kW / 0,38 kW / 3,14
Heat Output / Power Consumption / COP for A15/W55	Heat Output / Power Consumption / COP for A15/W55	1,5 kW / 0,42 kW / 3,57	1,5 kW / 0,42 kW / 3,57	1,44 kW / 0,40 kW / 3,58

Cylinder

Cylinder Nominal Capacity	Cylinder Nominal Capacity	100 l	150 l	270 l

Insulation And Heat Loss

Standby Heat Loss	Standby Heat Loss	0,81 kWh/24h	1,21 kWh/24h	1,77 kWh/24h

Electrical Connection

Electrical Power Consumption (max)	Electrical Power Consumption (max)	1,6 kW	1,6 kW	1,9 kW
Electrical Power Consumption for Back-Up Heater	Electrical Power Consumption for Back-Up Heater	1,2 kW	1,2 kW	1,2 kW
Electrical Voltage Supply	Electrical Voltage Supply	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)
Fuse Type	Fuse Type	8A	8A	8A

Refrigerant

Refrigerant	Refrigerant	R290	R290	R290
GWP	GWP	0,02	0,02	0,02
CO₂ Equivalent	CO₂ Equivalent	0,000002 t	0,000002 t	0,000003 t
Refrigerant Quantity	Refrigerant Quantity	0,1 kg	0,1 kg	0,15 kg

Connections

Connection Dimension Cold Water, Domestic Hot Water	Connection Dimension Cold Water, Domestic Hot Water	R ¾″	R ¾″	R ¾″
Connection Dimension Circulation	Connection Dimension Circulation	R ¾″	R ¾″	R ¾″
Connection Dimension Heat Source	Connection Dimension Heat Source	Ø 160 mm	Ø 160 mm	Ø 160 mm

Dimensions

Height / Width / Depth	Height / Width / Depth	1.263 mm / 525 mm / 525 mm	1.625 mm / 525 mm / 525 mm	1.783 mm / 634 mm / 634 mm
Weight	Weight	47 kg	57,5 kg	68 kg
Weight Ready for Operation	Weight Ready for Operation	147 kg	207,5 kg	338 kg

Limitations

Temperature Domestic Hot Water, Heat Pump (max)	Temperature Domestic Hot Water, Heat Pump (max)	55 °C	55 °C	60 °C
Temperature Domestic Hot Water, Disinfection (With Back-Up Heater) (max)	Temperature Domestic Hot Water, Disinfection (With Back-Up Heater) (max)	70 °C	70 °C	70 °C
Temperature Domestic Hot Water, Heat Pump (With Back-Up Heater) (max)	Temperature Domestic Hot Water, Heat Pump (With Back-Up Heater) (max)	65 °C	65 °C	65 °C
Temperature Heat Source (min - max)	Temperature Heat Source (min - max)	-7 - 45 °C	-7 - 45 °C	-7 - 45 °C
Volume Installation Room (acc. to EN 779) (min)	Volume Installation Room (acc. to EN 779) (min)	18,75 m³	18,75 m³	18,75 m³
Operating Pressure Domestic Hot Water (max)	Operating Pressure Domestic Hot Water (max)	6 bar	6 bar	6 bar
Connection Pipe Heat Source (Flexible Pipe Ø 160 mm) (max)	Connection Pipe Heat Source (Flexible Pipe Ø 160 mm) (max)	10 m	10 m	10 m
Connection Pipe Heat Source (Rigid Pipe Ø 160 mm) (max)	Connection Pipe Heat Source (Rigid Pipe Ø 160 mm) (max)	20 m	20 m	20 m
