Fan coil units: the solution for flexible climate control.

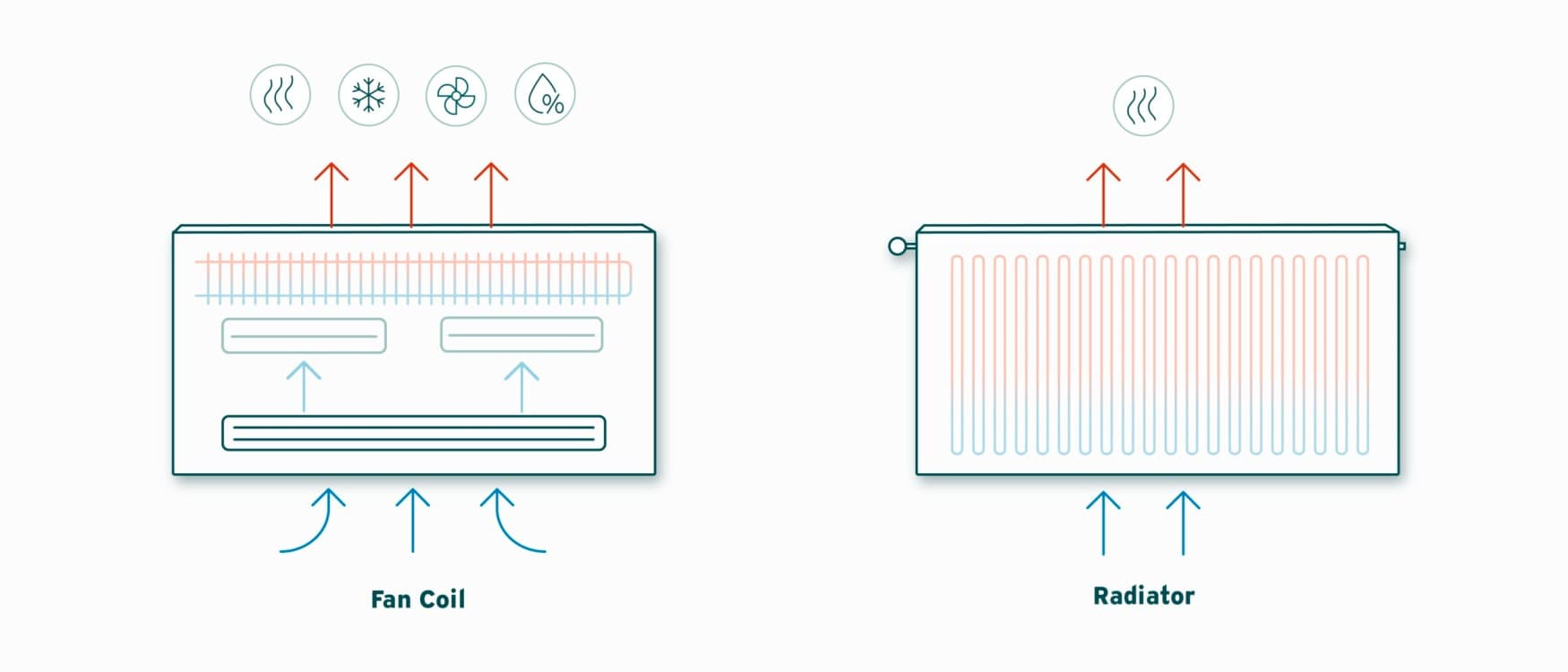

Fan coil units are sophisticated devices that manage heating and cooling more efficiently than traditional radiators through a dynamic air circulation process. While radiators transfer heat to the room air through convection and radiation without filtering it, fan coil units draw room air through a filter, to ensure clean air intake. This air then flows over a coil containing heated or cooled water. In heating mode, the air absorbs warmth; in cooling mode, it releases heat to the cooler water.

A quiet, inverter-controlled fan redistributes the conditioned air back into the room, ensuring rapid and even temperature spread. This active air movement allows for lower system temperatures. A unique advantage emerges when fan coils operate with heat pumps, as heat pumps absorb heat from the evironmental energy and supply the fan coils with the cooled or heated water, which is used to comfortably cool or heat the rooms. When cooling with a heat pump, the fan coils act as chillers, transporting the heat outside.

Connecting fan coils with warm or cold water can be done in a two-pipe or four-pipe system. The two-pipe system uses two lines to transport both supply and return flows, allowing either warm or cold water to circulate through the building. This setup allows all fan coils either to heat or to cool simultaneously, offering cost-effective installation but less operational flexibility. The four-pipe system connects each fan coil with separate lines for warm and cold water, enabling independent heating and cooling per unit. While providing maximum flexibility, it requires more extensive installation due to additional piping, resulting in higher costs. This system can connect to a chiller and a separate heat generator, allowing individual room heating or cooling. Overall, fan coil units offer a versatile solution for maintaining comfortable indoor environments, efficiently managing air quality and temperature with ease.

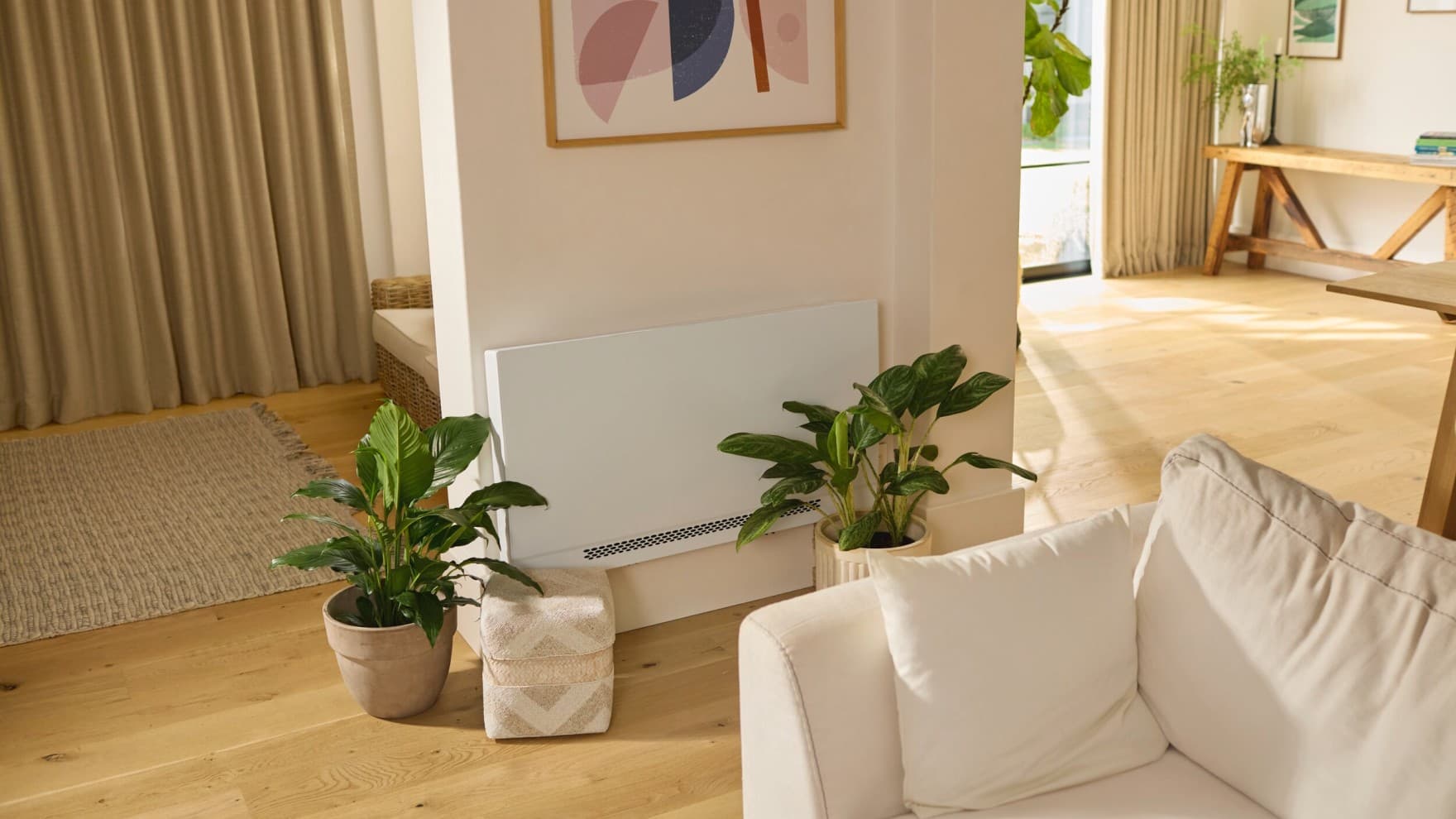

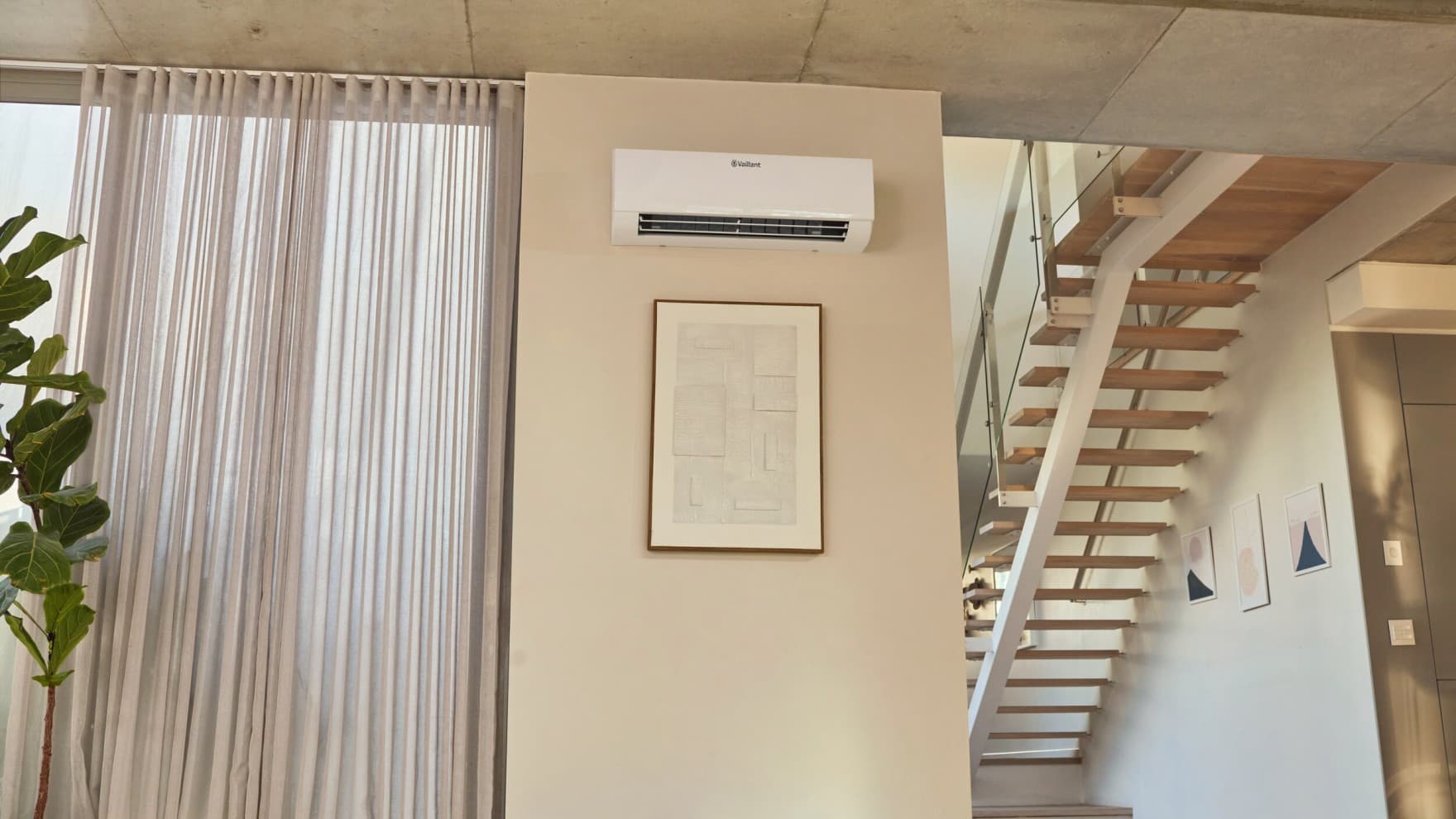

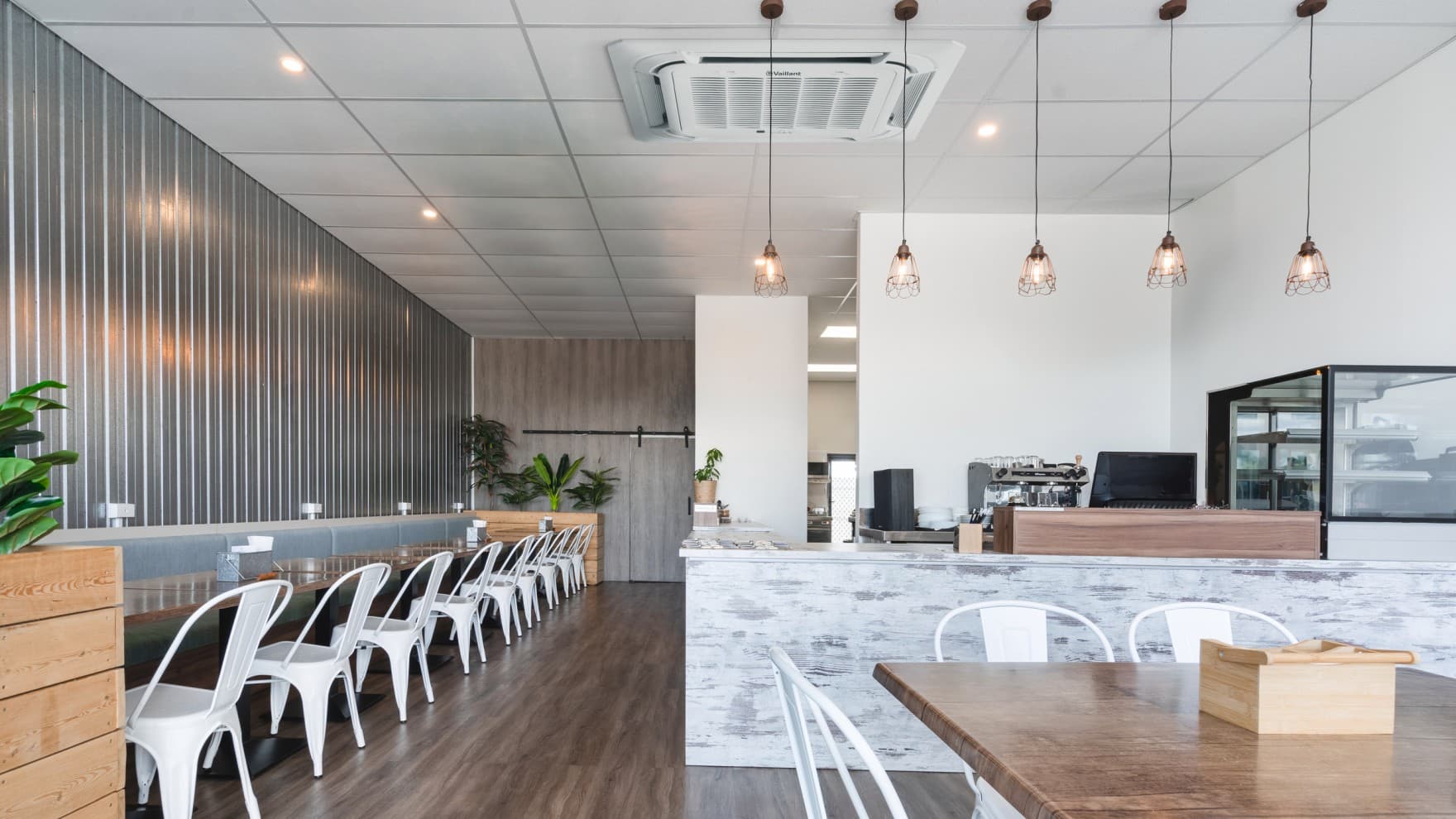

When considering fan coil units, it's essential to evaluate both installation options and costs. The price of a fan coil unit varies based on type, size, capacity, and features. Wall-mounted or floor-standing units may start at a few hundred Euros, while ducted or cassette units with advanced features are priced higher. While initial costs may be higher than traditional radiators, fan coil units offer superior efficiency, especially when paired with a heat pump, leading to significant long-term savings. Ducted or cassette units may require planning for space within suspended ceilings or walls. Fan coils use water as a heat transfer medium, reducing refrigerant needs compared to direct expansion systems, though the primary heat source will still contain refrigerant. Beyond the unit itself, consider the overall system costs, including the heat source, pipework, and installation. Two-pipe systems are less complex and more affordable than four-pipe systems, which offer greater flexibility but come with higher installation costs due to additional pipework.

Heating controls like the system control sensoCOMFORT can integrate fan coil units into the whole systems, optimising control and energy management. Consulting with a qualified installation partner is crucial for an accurate estimate. They can assess your property's needs, correctly size the system, and provide a detailed quotation for both units and installation.
