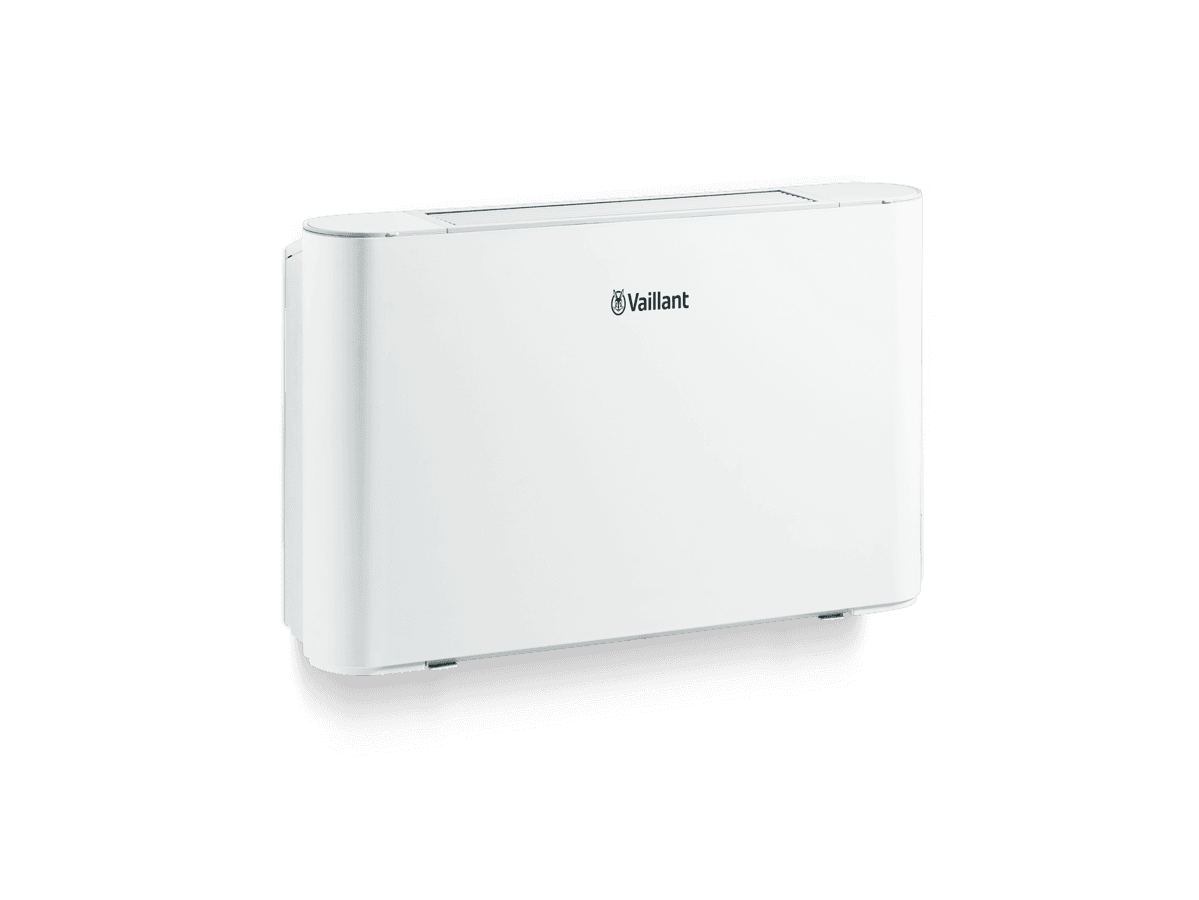

Fan CoilaroVAIR pro CN

Enables flexible heating and cooling with aroTHERM heat pumps.

A versatile solution for heating, cooling and dehumidifying
Flexible installation on walls or ceilings
Adaptable control panel placement for any setup
The ideal solution for renovations and great efficiency
The perfect match for heat pumps
Clean, fresh air with an integrated dust filter

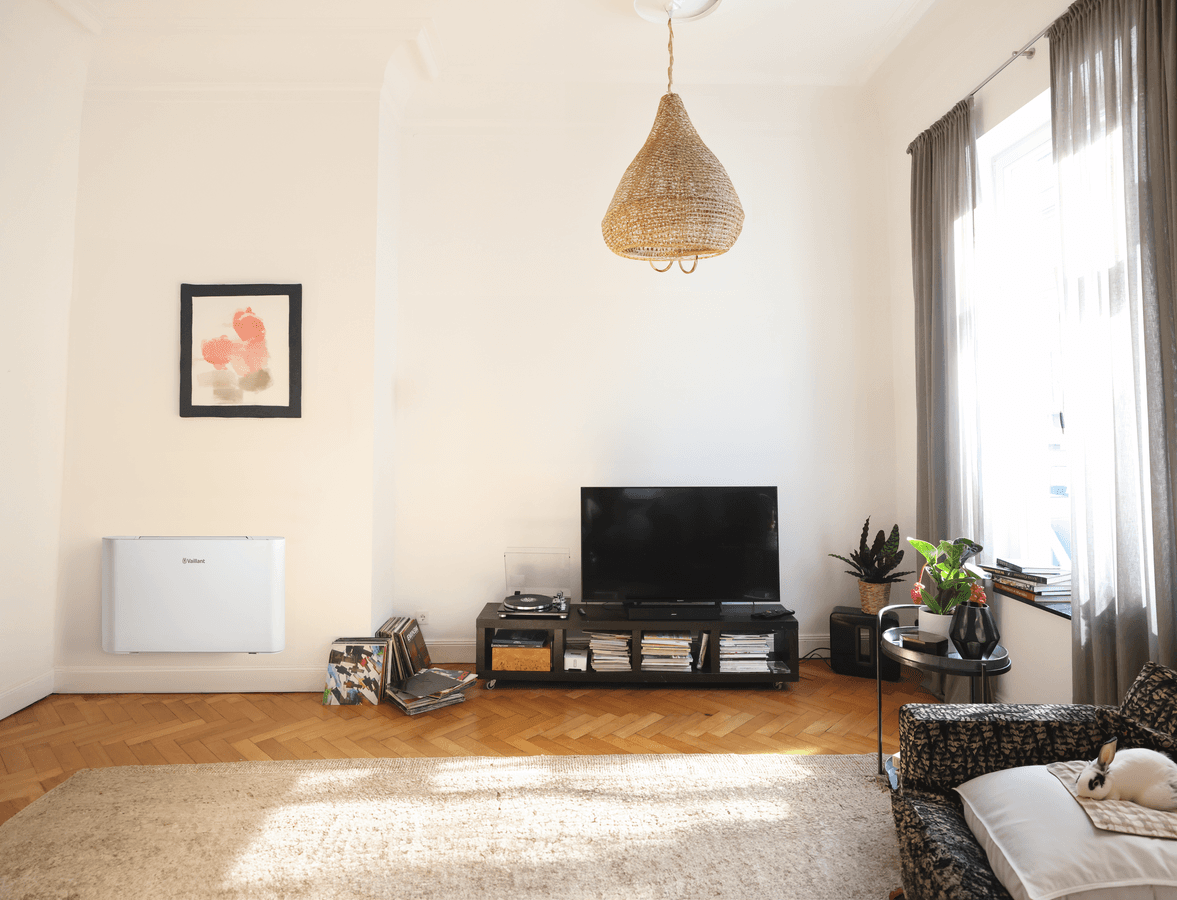

Heating in winter, cooling and dehumidifying in summer, the aroVAIR pro CN fan coil unit ensures the perfect indoor climate all year round. It connects directly to the heating circuit of a heat pump and distributes warm or cool air through its integrated fan. Because it requires lower flow temperatures than traditional radiators, it helps your heat pump operate more efficiently. Thanks to its compact design, it fits seamlessly into any living space and can be installed on the wall, floor or ceiling, making it ideal for smaller rooms. Designed to replace conventional radiators, these units are available with outputs of 1.5 kW, 3.5 kW, 4.5 kW and 7 kW.

Ideal for:

Heating
Cooling

Technical data table overline

Technical data table headline

aroVAIR pro
VA 2-015 CN	VA 2-035 CN	VA 2-045 CN	VA 2-070 CN

Power Output and Efficiency

Cooling Output (acc. to EN 1397) (min)	Cooling Output (acc. to EN 1397) (min)	0,92 kW¹	2,22 kW¹	2,71 kW¹	4,57 kW¹
Cooling Output (acc. to EN 1397) (medium)	Cooling Output (acc. to EN 1397) (medium)	1,06 kW¹	2,89 kW¹	3,48 kW¹	6,12 kW¹
Cooling Output (acc. to EN 1397) (max)	Cooling Output (acc. to EN 1397) (max)	1,50 kW¹	3,50 kW¹	4,30 kW¹	7,35 kW¹
Cooling Output (acc. to EN 1397) (sensible)	Cooling Output (acc. to EN 1397) (sensible)	1,14 kW¹	2,65 kW¹	3,25 kW¹	5,87 kW¹
Cooling Output (acc. to EN 1397) (latent)	Cooling Output (acc. to EN 1397) (latent)	0,36 kW¹	0,85 kW¹	1,05 kW¹	1,48 kW¹
Heat Output (acc. to EN 1397) (min)	Heat Output (acc. to EN 1397) (min)	0,92 kW²	2,19 kW²	2,60 kW²	4,71 kW²
Heat Output (acc. to EN 1397) (medium)	Heat Output (acc. to EN 1397) (medium)	1,07 kW²	2,87 kW²	3,43 kW²	6,46 kW²
Heat Output (acc. to EN 1397) (max)	Heat Output (acc. to EN 1397) (max)	1,57 kW²	3,50 kW²	4,30 kW²	8,05 kW²

Ventilation

Air Volume Flow (min)	Air Volume Flow (min)	150 m³/h	340 m³/h	410 m³/h	685 m³/h
Air Volume Flow (medium)	Air Volume Flow (medium)	170 m³/h	470 m³/h	580 m³/h	1.015 m³/h
Air Volume Flow (max)	Air Volume Flow (max)	255 m³/h	595 m³/h	790 m³/h	1.360 m³/h

Electrical Connection

Electrical Power Consumption (max)	Electrical Power Consumption (max)	15 W	26 W	50 W	113 W
Electrical Power Consumption (medium)	Electrical Power Consumption (medium)	9 W	17 W	25 W	53 W
Electrical Power Consumption (min)	Electrical Power Consumption (min)	8 W	10 W	14 W	22 W
Electrical Voltage Supply	Electrical Voltage Supply	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)

Hydraulics

Flow Rate / Pressure Loss , Cooling Water (Cooling Mode) (min - nominal)	Flow Rate / Pressure Loss , Cooling Water (Cooling Mode) (min - nominal)	180 l/h / 5,84 kPa	400 l/h / 14,82 kPa	620 l/h / 22,78 kPa	810 l/h / 19,41 kPa
Flow Rate / Pressure Loss , Cooling Water (Cooling Mode) (medium, nominal)	Flow Rate / Pressure Loss , Cooling Water (Cooling Mode) (medium, nominal)	210 l/h / 7,63 kPa	510 l/h / 24,41 kPa	730 l/h / 36,22 kPa	1.100 l/h / 33,7 kPa
Flow Rate / Pressure Loss , Cooling Water (Cooling Mode) (max - nominal)	Flow Rate / Pressure Loss , Cooling Water (Cooling Mode) (max - nominal)	310 l/h / 15,1 kPa	610 l/h / 35,1 kPa	770 l/h / 54,2 kPa	1.280 l/h / 44,1 kPa
Flow Rate / Pressure Loss , Heating Water (Heating Mode) (min - nominal)	Flow Rate / Pressure Loss , Heating Water (Heating Mode) (min - nominal)	180 l/h / 5,84 kPa	430 l/h / 14,82 kPa	680 l/h / 22,32 kPa	840 l/h / 18,16 kPa
Flow Rate / Pressure Loss , Heating Water (Heating Mode) (medium, nominal)	Flow Rate / Pressure Loss , Heating Water (Heating Mode) (medium, nominal)	210 l/h / 7,63 kPa	560 l/h / 24,41 kPa	810 l/h / 36,87 kPa	1.140 l/h / 31,9 kPa
Flow Rate / Pressure Loss , Heating Water (Heating Mode) (max - nominal)	Flow Rate / Pressure Loss , Heating Water (Heating Mode) (max - nominal)	310 l/h / 15,1 kPa	680 l/h / 35,1 kPa	850 l/h / 54,3 kPa	1.400 l/h / 46,9 kPa

Noise Emission

Sound Power Level / Sound Pressure Level (acc. to EN 16583) (min)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (min)	34 dB / 21 dB	37 dB / 25 dB	43 dB / 30 dB	49 dB / 33 dB
Sound Power Level / Sound Pressure Level (acc. to EN 16583) (medium)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (medium)	37 dB / 24 dB	45 dB / 32 dB	52 dB / 38 dB	58 dB / 44 dB
Sound Power Level / Sound Pressure Level (acc. to EN 16583) (max)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (max)	47 dB / 34 dB	52 dB / 38 dB	59 dB / 46 dB	64 dB / 52 dB

Connections

Connection Dimension Cooling Water, Heating Water	Connection Dimension Cooling Water, Heating Water	G ¾″	G ¾″	G ¾″	G ¾″
Connection Dimension Condensate Discharge	Connection Dimension Condensate Discharge	Ø 18,5 mm	Ø 18,5 mm	Ø 18,5 mm	Ø 18,5 mm

Dimensions

Height / Width / Depth	Height / Width / Depth	495 mm / 790 mm / 200 mm	495 mm / 1.240 mm / 200 mm	495 mm / 1.240 mm / 200 mm	591 mm / 1.360 mm / 200 mm
Weight	Weight	18 kg	25,5 kg	25,5 kg	32,5 kg

Limitations

Operating Pressure (max)	Operating Pressure (max)	16,0 bar	16,0 bar	16,0 bar	16,0 bar

¹Cooling conditions: Water temperature: 7 °C (inlet) / 12 °C (outlet), ambient temperature: 27 °C (dry temperature) / 19 °C (wet temperature)

²Heating conditions: Water temperature: 45 °C / ΔT = 5 K (inlet), same water flow as for cooling conditions, Ambient temperature: 20 °C (dry temperature)
