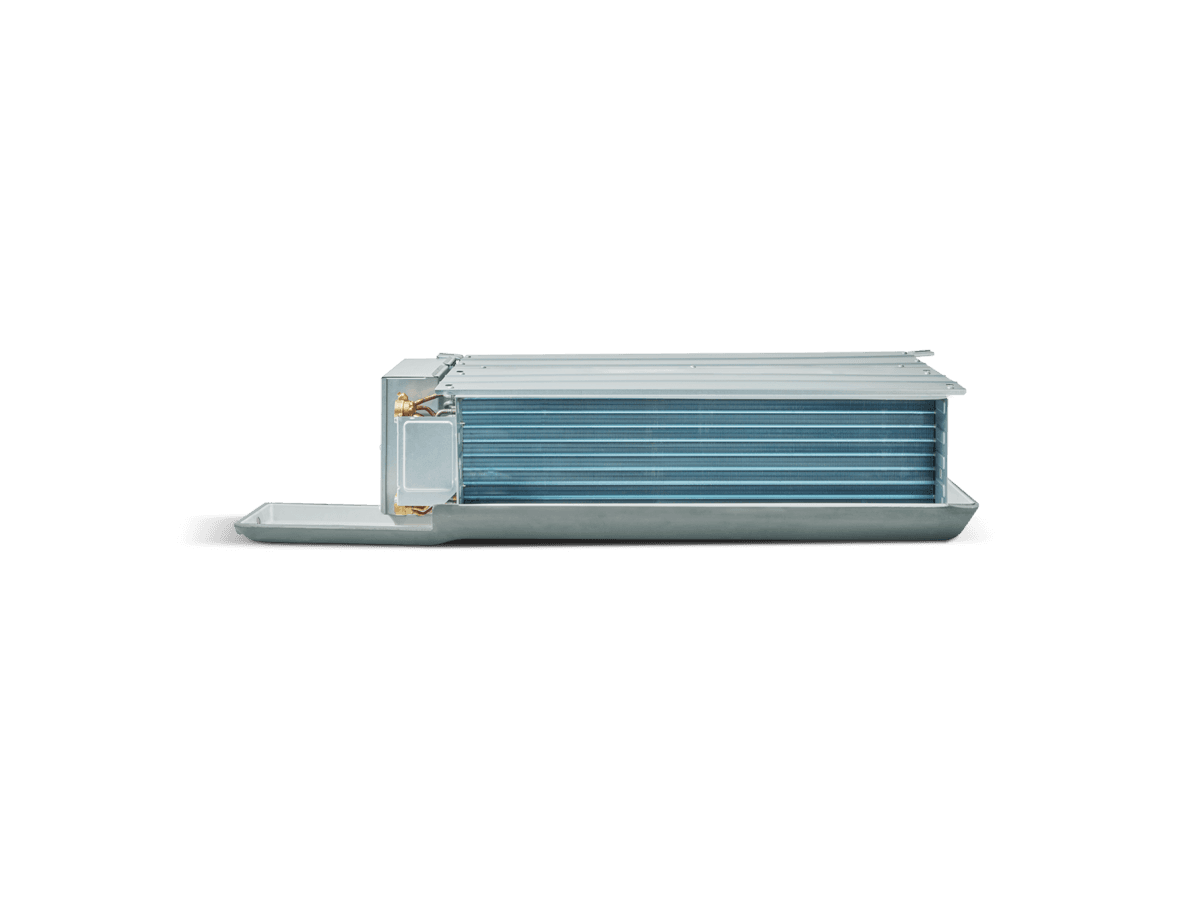

Fan CoilaroVAIR pro DN

Efficiency is in the air – extend your reversible heat pump with our fan coil units.

Heating, cooling, ventilation and dehumidification for ambient comfort
Perfectly compatible with Vaillant aroTHERM heat pump
Easy installation, no handling of refrigerants gas required
Invisible, in living rooms or offices
Rapid temperature control and energy efficiency with minimal noise
Wired or wireless control for individual settings of various comfort functions

aroVAIR pro duct fan coils offer both versatility and discreet integration in any room equipped with a suspended ceiling, whether at home or in an office. Designed mainly for new builds, they provide fast and efficient heating, cooling, dehumidification and ventilation.

Working in perfect synergy with aroTHERM heat pumps, they ensure comfortable indoor temperatures all year round. The units can operate independently or complement underfloor heating and radiators for added flexibility. Available in five output levels from 2 kW to 10 kW, they adapt easily to rooms of varying sizes.

Ideal for:

Heating
Cooling

Technical data table overline

Technical data table headline

aroVAIR pro
VA 2-020 DN	VA 2-040 DN	VA 2-060 DN	VA 2-090 DN	VA 2-110 DN

Power Output and Efficiency

Cooling Output (acc. to EN 1397) (min)	Cooling Output (acc. to EN 1397) (min)	1,59 kW¹	2,88 kW¹	3,66 kW¹	4,97 kW¹	6,02 kW¹
Cooling Output (acc. to EN 1397) (medium)	Cooling Output (acc. to EN 1397) (medium)	2,05 kW¹	3,69 kW¹	4,88 kW¹	7,10 kW¹	7,25 kW¹
Cooling Output (acc. to EN 1397) (max)	Cooling Output (acc. to EN 1397) (max)	2,45 kW¹	4,25 kW¹	5,85 kW¹	9,05 kW¹	10,08 kW¹
Cooling Output (acc. to EN 1397) (sensible)	Cooling Output (acc. to EN 1397) (sensible)	1,83 kW¹	3,45 kW¹	4,60 kW¹	6,95 kW¹	9,08 kW¹
Cooling Output (acc. to EN 1397) (latent)	Cooling Output (acc. to EN 1397) (latent)	0,62 kW¹	0,80 kW¹	1,25 kW¹	2,10 kW¹	2,49 kW¹
Heat Output (acc. to EN 1397) (min)	Heat Output (acc. to EN 1397) (min)	1,83 kW²	3,36 kW²	4,21 kW²	5,41 kW²	6,78 kW²
Heat Output (acc. to EN 1397) (medium)	Heat Output (acc. to EN 1397) (medium)	2,24 kW²	4,31 kW²	5,66 kW²	8,02 kW²	8,32 kW²
Heat Output (acc. to EN 1397) (max)	Heat Output (acc. to EN 1397) (max)	2,68 kW²	5,00 kW²	6,90 kW²	11,00 kW²	11,83 kW²

Ventilation

Air Volume Flow (min)	Air Volume Flow (min)	226 m³/h	446 m³/h	576 m³/h	740 m³/h	1.028 m³/h
Air Volume Flow (medium)	Air Volume Flow (medium)	301 m³/h	602 m³/h	815 m³/h	1.024 m³/h	1.379 m³/h
Air Volume Flow (max)	Air Volume Flow (max)	377 m³/h	735 m³/h	1.042 m³/h	1.665 m³/h	1.720 m³/h

Electrical Connection

Electrical Power Consumption (max)	Electrical Power Consumption (max)	17 W	35 W	65 W	119 W	17 W
Electrical Power Consumption (medium)	Electrical Power Consumption (medium)	10 W	20 W	30 W	54 W	10 W
Electrical Power Consumption (min)	Electrical Power Consumption (min)	9 W	12 W	17 W	23 W	9 W
Electrical Voltage Supply	Electrical Voltage Supply	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)

Hydraulics

Nominal Volume Flow (Cooling Mode)	Nominal Volume Flow (Cooling Mode)	410 l/h	760 l/h	1.000 l/h	1.580 l/h	1.690 l/h
Pressure Loss (Cooling Mode)	Pressure Loss (Cooling Mode)	17 kPa	19 kPa	34 kPa	32 kPa	27 kPa

Noise Emission

Sound Power Level / Sound Pressure Level (acc. to EN 16583) (min)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (min)	39,5 dB / 24,5 dB	30 dB / 29,8 dB	34 dB / 36 dB	50 dB / 33,5 dB	61,5 dB / 33,4 dB
Sound Power Level / Sound Pressure Level (acc. to EN 16583) (medium)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (medium)	47 dB / 32 dB	37,5 dB / 36,5 dB	43,5 dB / 43,9 dB	61 dB / 45,9 dB	65 dB / 42,6 dB
Sound Power Level / Sound Pressure Level (acc. to EN 16583) (max)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (max)	53 dB / 37,6 dB	43 dB / 42,5 dB	49,5 dB / 50,1 dB	67 dB / 54,2 dB	69 dB / 49,5 dB

Connections

Connection Dimension Cooling Water, Heating Water	Connection Dimension Cooling Water, Heating Water	Rc ¾″	Rc ¾″	Rc ¾″	Rc ¾″	Rc ¾″
Connection Dimension Condensate Discharge	Connection Dimension Condensate Discharge	Ø 24 mm	Ø 24 mm	Ø 24 mm	Ø 24 mm	Ø 24 mm

Dimensions

Height / Width / Depth	Height / Width / Depth	482 mm / 632 mm / 243 mm	482 mm / 908 mm / 243 mm	482 mm / 1.003 mm / 243 mm	482 mm / 632 mm / 243 mm	482 mm / 1.658 mm / 243 mm
Weight	Weight	14,0 kg	19,2 kg	21,7 kg	27,7 kg	33,8 kg

Limitations

Operating Pressure (max)	Operating Pressure (max)	16,0 bar	16,0 bar	16,0 bar	16,0 bar	16,0 bar

¹Cooling conditions: Water temperature: 7 °C (inlet) / 12 °C (outlet), ambient temperature: 27 °C (dry temperature) / 19 °C (wet temperature)

²Heating conditions: Water temperature: 45 °C / ΔT = 5 K (inlet), same water flow as for cooling conditions, Ambient temperature: 20 °C (dry temperature)

Downloads overline

Downloads headline

Operating Instructions

aroVAIR pro DN Operating InstructionVA 2-020 DN, VA 2-040 DN, VA 2-060 DN, VA 2-090 DN, VA 2-110 DNPDF (0.91 MB)
