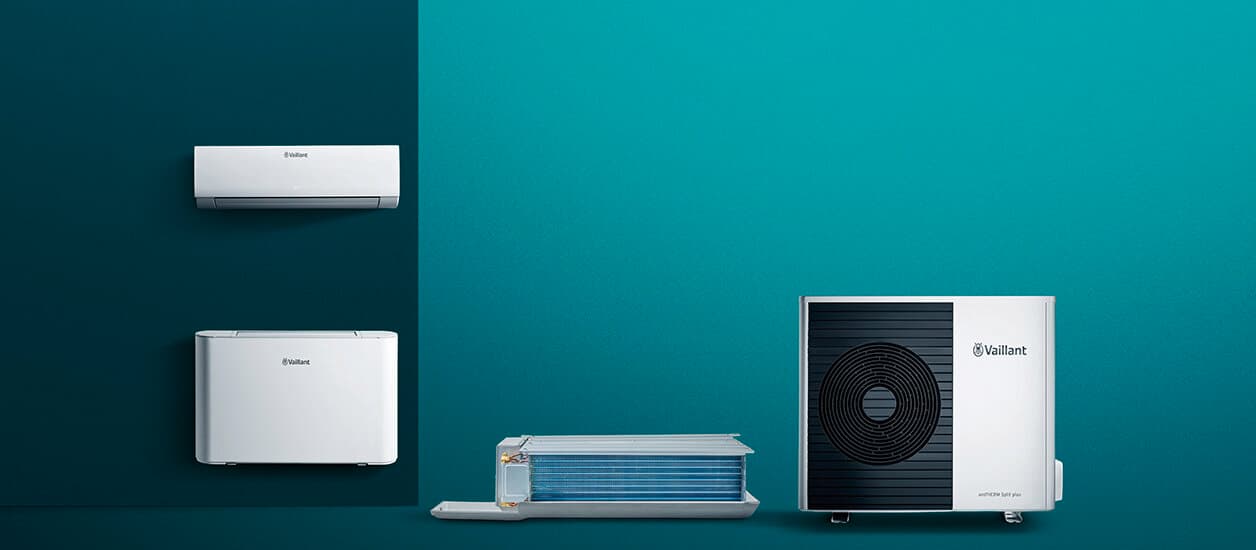

Fan CoilaroVAIR pro WN

The flexible radiator replacement for heating and cooling with a heat pump.

Heating, cooling, ventilation and dehumidification for year-round comfort
Perfect compatibility with Vaillant aroTHERM heat pumps
No refrigerants or gas handling required
Compact installation that frees up living space
Rapid temperature control with minimal noise
Wired or wireless operation for personalised settings

The aroVAIR wall hung fan coil exemplify versatility, making it suitable for all types of rooms in the house, needing efficient climate control. Designed for both new builds and modernised homes, these fan coils provide exceptional heating, cooling, dehumidification and ventilation with remarkable speed. Whether in living rooms, kitchen, aroVAIR casettes ensure tailored comfort throughout the year, by perfectly and efficiently partnering with aroTHERM heat pumps. They function independently or can seamlessly complement underfloor heating and radiator.

Ideal for:

Heating
Cooling

All-in-one indoor climate comfortHeating, cooling, ventilation and dehumidification for year-round comfort.
All-in-one indoor climate comfort
aroVIAR fan coils can heat or cool a room depending on the season, while also providing ventilation and removing excess humidity — all in a single unit. When combined with a reversible heat pump such as the aroTHERM, they deliver complete ambient comfort throughout the entire year.
Designed for maximum heat-pump efficiencyPerfect compatibility with Vaillant aroTHERM heat pumps.
Designed for maximum heat-pump efficiency
aroVAIR fan coils are the ideal complement to aroTHERM heat pumps. They transfer the heat or cooling provided by the reversible heat pump, allowing you to take full advantage of the technology. In addition, they enable the heat pump to be operated under ideal conditions, maximising its energy efficiency.
Simple, water-based installationNo refrigerants or gas handling required.
Simple, water-based installation
As with traditional radiators or underfloor heating, only water circulates between the indoor unit of the heat pump and the fan coils to provide heating or cooling. No refrigerants or gas are used, making installation and maintenance simpler and allowing the work to be carried out by your usual installer.
Space-saving wall-mounted designCompact installation that frees up living space.
Space-saving wall-mounted design

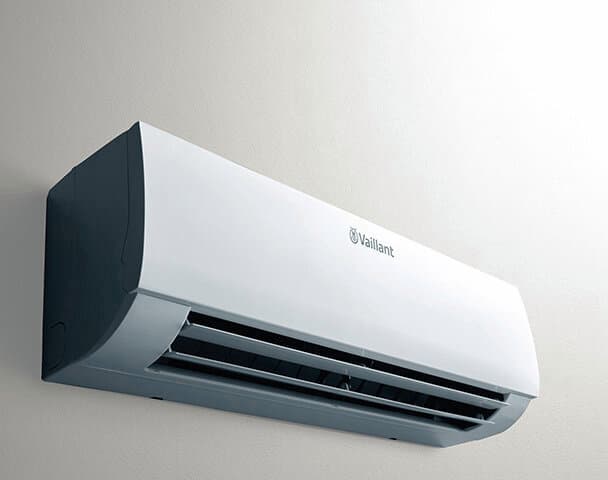

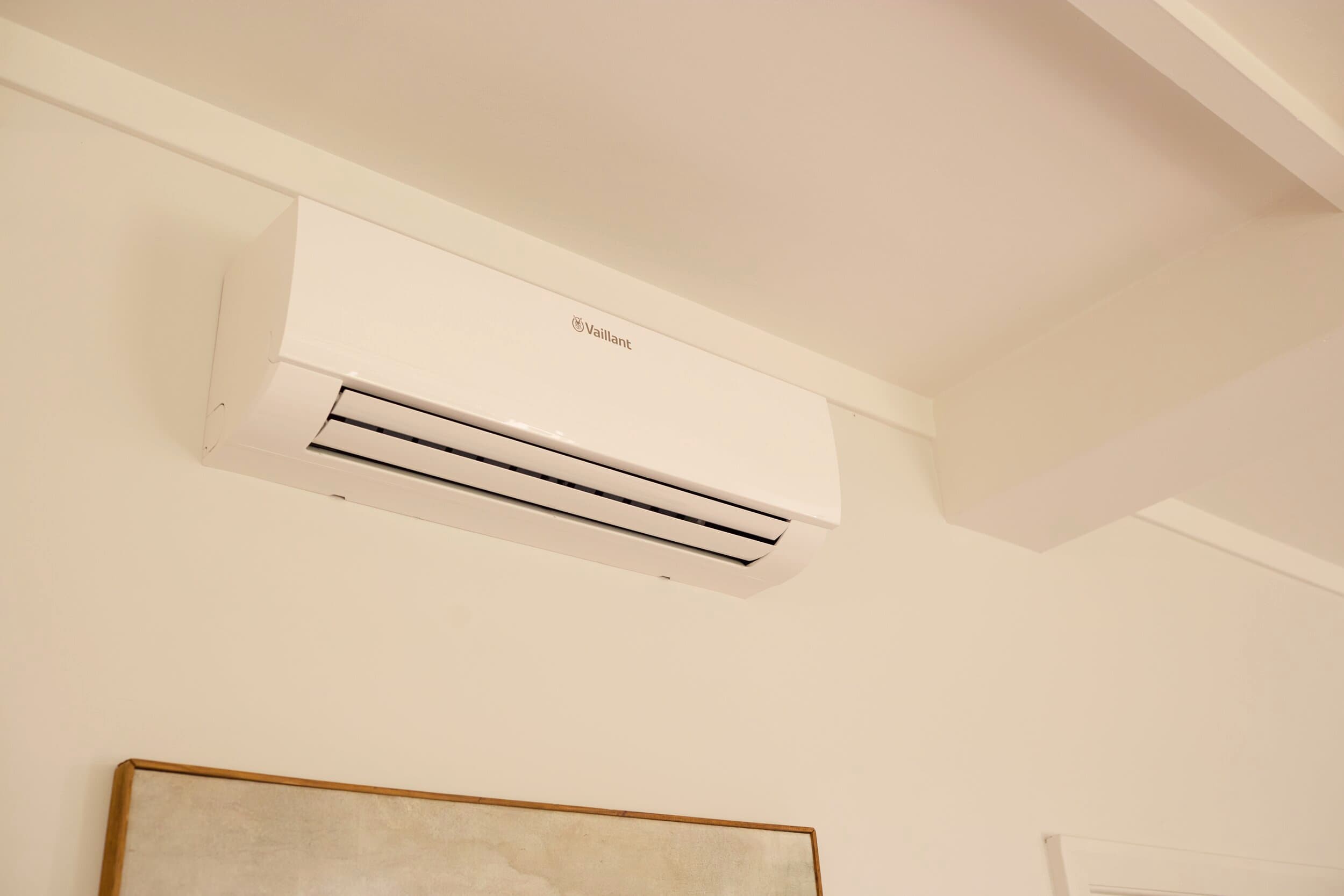

The wall‑hung aroVAIR units are typically mounted at a height of over 2 metres, freeing up the lower part of the walls. This creates valuable space to position furniture and decoration without obstruction.
Fast response with quiet operationRapid temperature control with minimal noise.
Fast response with quiet operation
By using controlled, comfortable pulsed air to heat or cool the room, aroVAIR quickly reaches the desired temperature with very little inertia. It adapts rapidly to changing conditions, including ventilation needs and humidity removal. The unit features a silent fan with adjustable operating speed, which runs even quieter at night – ideal for bedrooms.
Flexible comfort controlWired or wireless operation for personalised settings.
Flexible comfort control

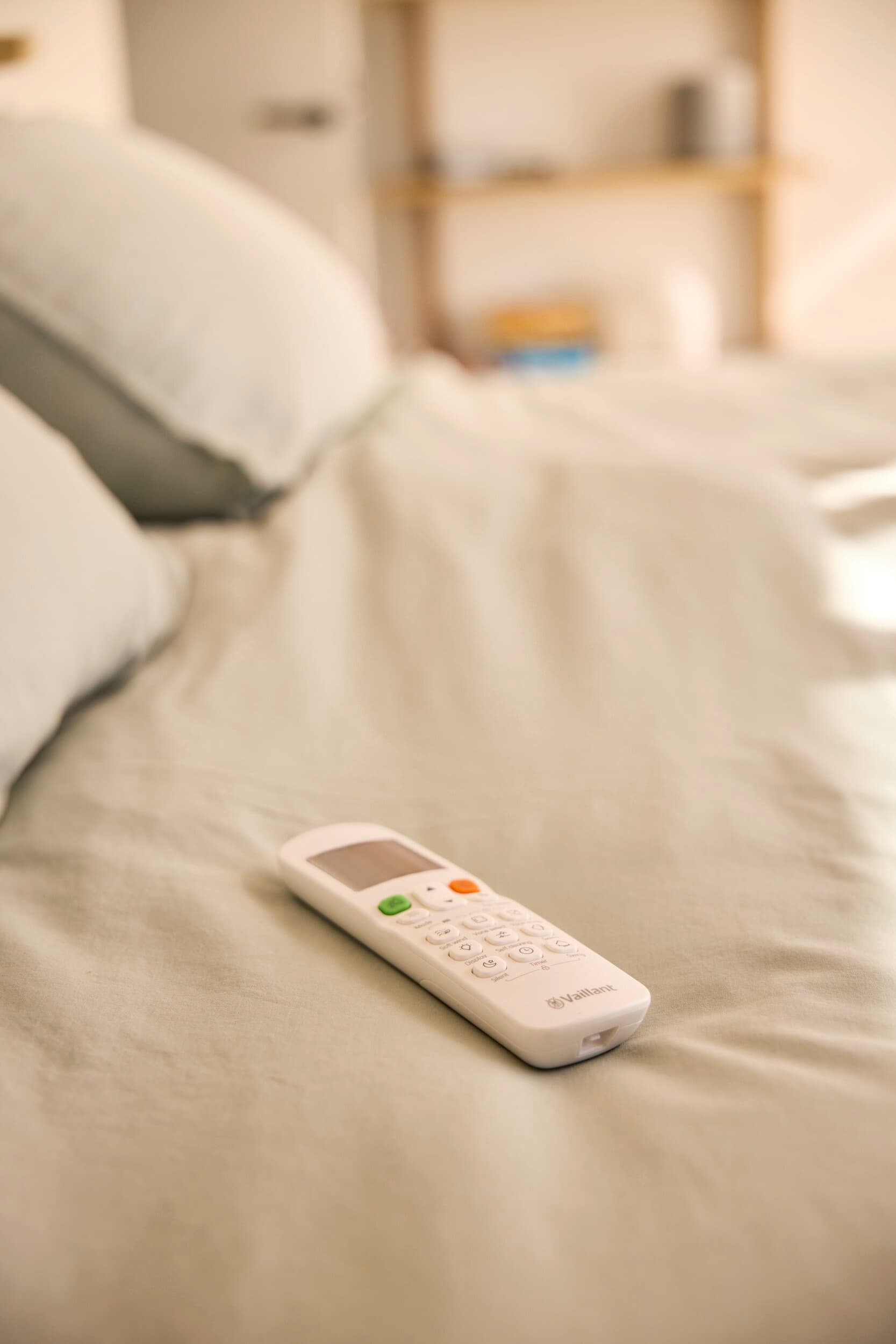

Temperature, ventilation, fan speed, and air sweep orientation can all be easily adjusted using the wired controls connected to aroVAIR or via remote wireless control, giving you full flexibility to tailor your comfort.
Comfort and efficiency modesOperating modes for the ideal balance of comfort and savings.
Comfort and efficiency modes
The aroVAIR control menus allow for adapting their operation to different situations – either continuous or intermittent. Depending on the setting, the unit can prioritise rapid distribution of hot or cold air, or switch to silent and economical modes, ensuring the ideal balance between comfort and energy savings in every scenario.

Technical data table overline

Technical data table headline

aroVAIR pro
VA 3-025 WN	VA 3-035 WN	VA 3-045 WN

Power Output and Efficiency

Cooling Output (acc. to EN 1397) (min)	Cooling Output (acc. to EN 1397) (min)	2,39 kW¹	2,88 kW¹	3,48 kW¹
Cooling Output (acc. to EN 1397) (medium)	Cooling Output (acc. to EN 1397) (medium)	2,59 kW¹	3,3 kW¹	3,98 kW¹
Cooling Output (acc. to EN 1397) (max)	Cooling Output (acc. to EN 1397) (max)	2,7 kW¹	3,81 kW¹	4,47 kW¹
Cooling Output (acc. to EN 1397) (sensible)	Cooling Output (acc. to EN 1397) (sensible)	2,15 kW¹	3,18 kW¹	3,67 kW¹
Cooling Output (acc. to EN 1397) (latent)	Cooling Output (acc. to EN 1397) (latent)	0,55 kW¹	0,63 kW¹	0,8 kW¹
Heat Output (acc. to EN 1397) (min)	Heat Output (acc. to EN 1397) (min)	2,58 kW²	3,09 kW²	3,62 kW²
Heat Output (acc. to EN 1397) (medium)	Heat Output (acc. to EN 1397) (medium)	2,8 kW²	3,65 kW²	3,98 kW²
Heat Output (acc. to EN 1397) (max)	Heat Output (acc. to EN 1397) (max)	2,94 kW²	4,3 kW²	4,47 kW²

Ventilation

Air Volume Flow (min)	Air Volume Flow (min)	400 m³/h	590 m³/h	634 m³/h
Air Volume Flow (medium)	Air Volume Flow (medium)	454 m³/h	689 m³/h	741 m³/h
Air Volume Flow (max)	Air Volume Flow (max)	492 m³/h	825 m³/h	862 m³/h

Electrical Connection

Electrical Power Consumption (max)	Electrical Power Consumption (max)	11 W	31 W	22 W
Electrical Power Consumption (medium)	Electrical Power Consumption (medium)	6 W	19 W	15 W
Electrical Power Consumption (min)	Electrical Power Consumption (min)	5 W	11 W	9 W
Electrical Voltage Supply	Electrical Voltage Supply	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)

Hydraulics

Nominal Volume Flow (Cooling Mode)	Nominal Volume Flow (Cooling Mode)	480 l/h	670 l/h	770 l/h
Pressure Loss (Cooling Mode)	Pressure Loss (Cooling Mode)	31,16 kPa	56,75 kPa	41,17 kPa

Noise Emission

Sound Power Level / Sound Pressure Level (acc. to EN 16583) (min)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (min)	39 dB / 32 dB	47 dB / 45 dB	42 dB / 38 dB
Sound Power Level / Sound Pressure Level (acc. to EN 16583) (medium)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (medium)	42 dB / 30 dB	51 dB / 39 dB	46 dB / 34 dB
Sound Power Level / Sound Pressure Level (acc. to EN 16583) (max)	Sound Power Level / Sound Pressure Level (acc. to EN 16583) (max)	44 dB / 27 dB	57 dB / 35 dB	50 dB / 30 dB

Connections

Connection Dimension Cooling Water, Heating Water	Connection Dimension Cooling Water, Heating Water	G ¾″	G ¾″	G ¾″
Connection Dimension Condensate Discharge	Connection Dimension Condensate Discharge	Ø 20 mm	Ø 20 mm	Ø 20 mm

Dimensions

Height / Width / Depth	Height / Width / Depth	290 mm / 915 mm / 230 mm	290 mm / 915 mm / 230 mm	315 mm / 1.072 mm / 230 mm
Weight	Weight	12,7 kg	12,7 kg	15,1 kg

Limitations

Operating Pressure (max)	Operating Pressure (max)	16,0 bar	16,0 bar	16,0 bar

¹Cooling conditions: Water temperature: 7 °C (inlet) / 12 °C (outlet), ambient temperature: 27 °C (dry temperature) / 19 °C (wet temperature)

²Heating conditions: Water temperature: 45 °C / ΔT = 5 K (inlet), same water flow as for cooling conditions, Ambient temperature: 20 °C (dry temperature)

Downloads overline

Downloads headline

Operating Instructions

aroVAIR pro WN Operating InstructionVA 3-025 WN, VA 3-035 WN, VA 3-045 WNPDF (2.7 MB)
