Air-Conditioning UnitclimaVAIR multi NO

The air conditioning multi split outdoor unit for heating and cooling multiple rooms.

Multi‑split outdoor unit with free‑match technology
Cool or heat each room individually
A++ efficiency in cooling and A+ in heating
Capacity range from 4 kW to 12 kW for different home sizes
Indoor unit options: wall-mounted, console, cassette and duct

Our climaVAIR multi range of outdoor air conditioning units delivers a standalone cooling and heating solution that meets all your needs: great energy efficiency, low inertia, maximum flexibility and a space‑saving installation. Each room gets its own indoor unit, selected for the comfort level and space available. Thanks to the FreeMatch multi‑split concept the combined systems works seamlessly together. You can connect up to five different rooms with one outdoor unit. Like a heat pump, climaVAIR multi draws energy from the ambient air in a highly efficient, climate‑friendly way.

Ideal for:

Cooling
Heating

Flexible system designMulti‑split outdoor unit with free‑match technology.
Flexible system design

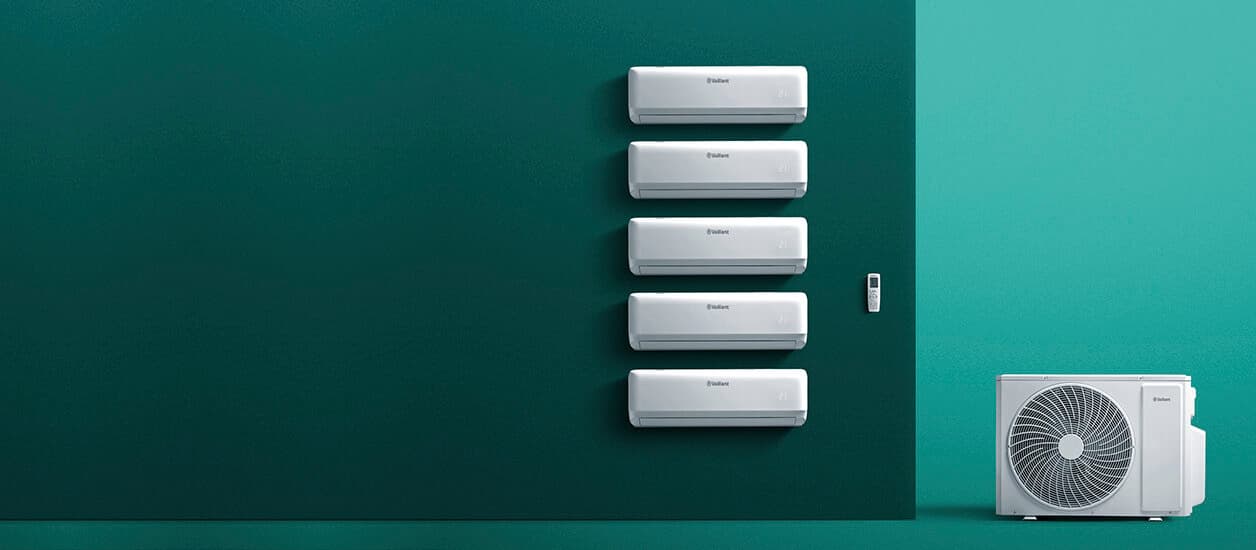

climaVAIR multi outdoor units let you connect up to five indoor air‑conditioning units in one system. Free‑match means you can mix different unit types and capacities, for example three wall‑mounted units with two consoles or one cassette with three wall‑mounted units – offering countless combinations to suit every room and requirement.
Individual room comfortCool or heat each room individually.
Individual room comfort
The system delivers cooling in summer and heating in winter, plus effective ventilation and humidity control. Each room can be conditioned independently, so comfort is restored quickly – whatever the season.
Efficient year-round operationA++ efficiency in cooling and A+ in heating.
Efficient year-round operation
climaVAIR air conditioners achieve good efficiency all year by taking free calories from the ambient air outside. They’re rated A++ in cooling and A+ in heating.
Scalable performanceCapacity range from 4 kW to 12 kW for different home sizes.
Scalable performance
With capacities from 4 kW to 12 kW, climaVAIR multi outdoor units can serve anything from two rooms in a small apartment to five rooms in a house or large flat – offering great flexibility with the range of compatible indoor units.
Maximum installation flexibilityIndoor unit options: wall-mounted, console, cassette and duct.
Maximum installation flexibility

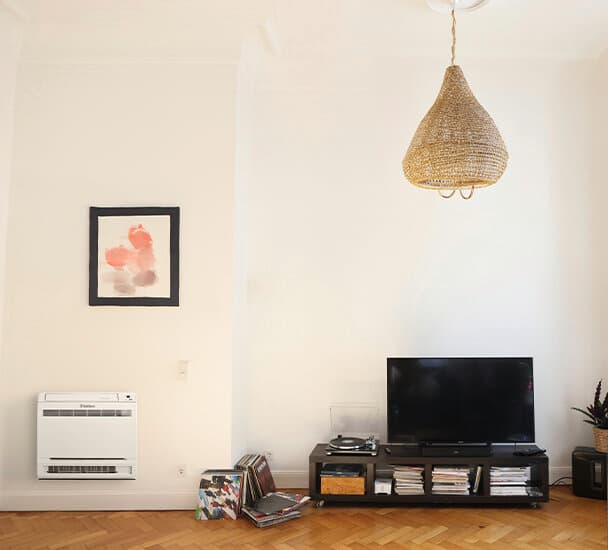

Choose from four indoor unit types – wall‑mounted units, console, cassette and ducts. Whether it’s new build or renovation, and whatever the available space, there’s always a suitable option. Each indoor unit comes in multiple capacities to match room size.

Technical data table overline

Technical data table headline

climaVAIR multi
VAM1-040A2NO	VAM1-050A2NO	VAM1-070A3NO	VAM1-080A4NO	VAM1-120A5NO

Power Output and Efficiency

Cooling Output (min - max)	Cooling Output (min - max)	2,05 - 5,0 kW	2,14 - 5,8 kW	2,3 - 9,2 kW	2,3 - 11,0 kW	2,6 - 15,2 kW
Cooling Output (nominal)	Cooling Output (nominal)	4,1 kW	5,3 kW	7,1 kW	8,0 kW	12,1 kW
Heat Output (min - max)	Heat Output (min - max)	2,49 - 5,4 kW	2,58 - 6,5 kW	2,8 - 9,2 kW	2,8 - 10,25 kW	3,0 - 15,5 kW
Heat Output (nominal)	Heat Output (nominal)	4,4 kW	5,65 kW	8,6 kW	9,5 kW	13,0 kW

Electrical Connection

Electrical Voltage Supply, Outdoor Unit	Electrical Voltage Supply, Outdoor Unit	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)

Refrigerant

Refrigerant	Refrigerant	R32	R32	R32	R32	R32
GWP	GWP	675	675	675	675	675
CO₂ Equivalent	CO₂ Equivalent	0,506 t	0,608 t	1,148 t	1,215 t	1,62 t
Refrigerant Quantity Additional	Refrigerant Quantity Additional	20 g/m	20 g/m	20 g/m	20 g/m	20 g/m
Refrigerant Quantity Default	Refrigerant Quantity Default	0,75 kg	0,9 kg	1,7 kg	1,8 kg	2,4 kg
Refrigerant Quantity Default for Pipe Length	Refrigerant Quantity Default for Pipe Length	10 m	10 m	30 m	40 m	50 m

Noise Emission

Sound Power Level, Outdoor Unit	Sound Power Level, Outdoor Unit	62 dB(A)	64 dB(A)	68 dB(A)	68 dB(A)	72 dB(A)
Sound Pressure Level In 1 m Distance, Outdoor Unit	Sound Pressure Level In 1 m Distance, Outdoor Unit	50 dB(A)	50 dB(A)	57 dB(A)	58 dB(A)	60 dB(A)

Connections

Connection Dimension Refrigerant Liquid Pipe	Connection Dimension Refrigerant Liquid Pipe	¼″	¼″	¼″	¼″	¼″
Connection Dimension Refrigerant Suction Pipe	Connection Dimension Refrigerant Suction Pipe	⅜″	⅜″	⅜″	⅜″	⅜″

Dimensions

Height / Width / Depth, Outdoor Unit	Height / Width / Depth, Outdoor Unit	550 mm / 822 mm / 352 mm	550 mm / 822 mm / 352 mm	660 mm / 964 mm / 402 mm	660 mm / 964 mm / 402 mm	826 mm / 1.020 mm / 427 mm
Weight, Outdoor Unit	Weight, Outdoor Unit	30 kg	32 kg	47,5 kg	51 kg	73 kg

Limitations

Environmental Temperature, Outdoor Unit (Heating Mode) (min - max)	Environmental Temperature, Outdoor Unit (Heating Mode) (min - max)	-15 - 24 °C	-15 - 24 °C	-15 - 24 °C	-15 - 24 °C	-15 - 24 °C
Environmental Temperature, Outdoor Unit (Cooling Mode) (min - max)	Environmental Temperature, Outdoor Unit (Cooling Mode) (min - max)	-15 - 43 °C	-15 - 43 °C	-15 - 43 °C	-15 - 43 °C	-15 - 43 °C
Pipe Height Distance (Indoor to Outdoor Unit) (max)	Pipe Height Distance (Indoor to Outdoor Unit) (max)	15 m	15 m	15 m	15 m	25 m
Distance (Indoor to Outdoor Unit) (max)	Distance (Indoor to Outdoor Unit) (max)	20 m	20 m	20 m	20 m	25 m
