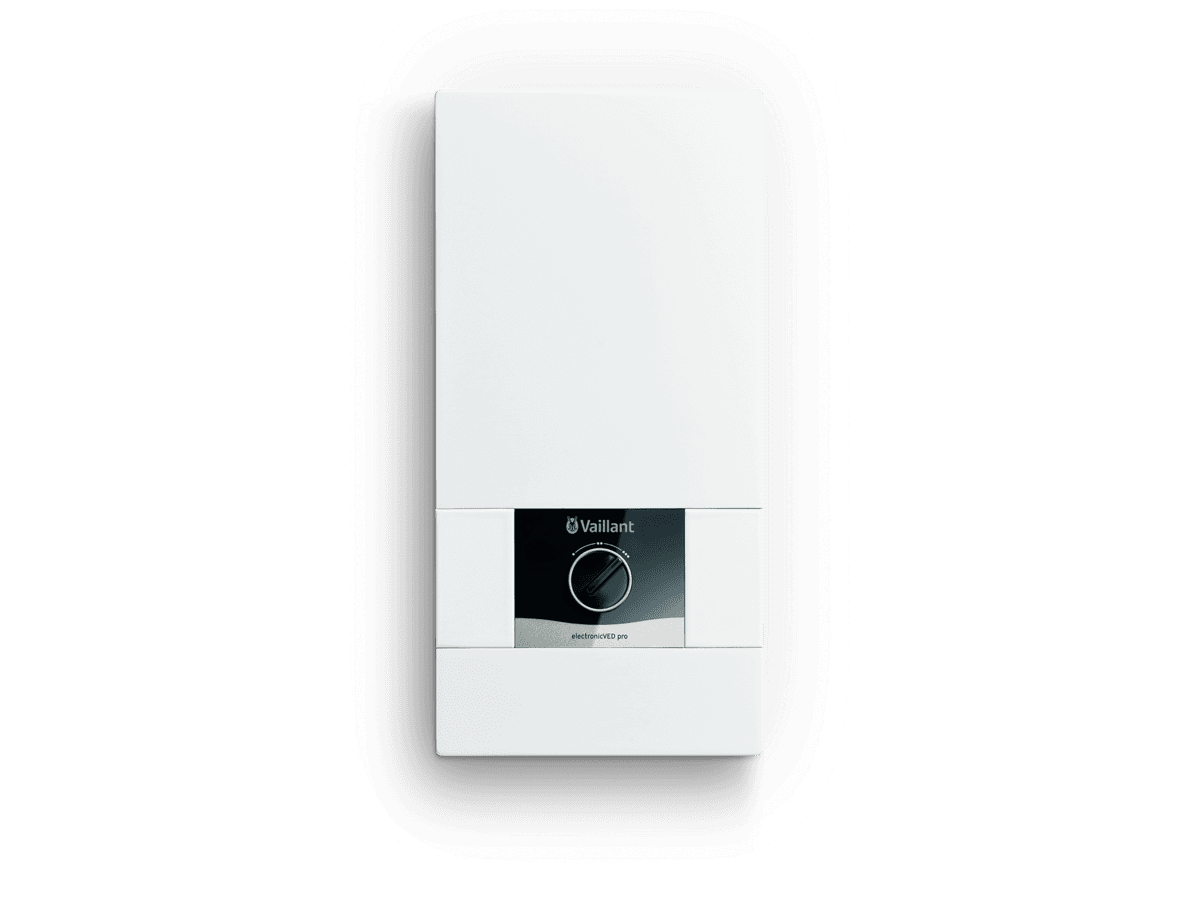

Electric Instantaneous Water HeaterelectronicVED pro

Modernization made effortless.

Three fixed temperature levels: 35, 45 or 55 °C
Stable hot water flow and temperature
Up to 20 % energy savings compared to hydraulic models
Slim, UV-resistant housing

Simply affordable, perfectly comfortable: The electronicVED pro instantaneous water heater delivers all the benefits of direct hot water generation at the tap. It minimizes heat losses, enhances hygiene, and provides hot water in three preset temperature levels according to your needs. Compact and efficient, it’s ideal for both new installations and modernizations, offering a reliable and energy-saving solution for everyday hot water comfort.

Ideal for:

Hot water

Technical data table overline

Technical data table headline

electronicVED pro
VED E 18/8 B	VED E 21/8 B	VED E 24/8 B	VED E 27/8 B

ErP

ErP Water Heater Energy Efficiency Class Of Water Heater	ErP Water Heater Energy Efficiency Class Of Water Heater
ErP Water Heating Energy Efficiency	ErP Water Heating Energy Efficiency	39 %	39 %	39 %	39 %

electronicVED pro
VED E 18/8 B	VED E 21/8 B	VED E 24/8 B	VED E 27/8 B

Power Output and Efficiency

Nominal Heat Output	Nominal Heat Output	18 kW	21 kW	24 kW	27 kW
Output Modulation Type	Output Modulation Type	Electronic	Electronic	Electronic	Electronic

Domestic Hot Water

Continuous Domestic Hot Water Output (Δt = 30 K)	Continuous Domestic Hot Water Output (Δt = 30 K)	8 l/min	8 l/min	8 l/min	10 l/min

Electrical Connection

Electrical Connection Type	Electrical Connection Type	Cable Connection	Cable Connection	Cable Connection	Cable Connection
Electrical Voltage Supply	Electrical Voltage Supply	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)
IP Rating¹	IP Rating¹	IP25	IP25	IP25	IP25

Dimensions

Height / Width / Depth	Height / Width / Depth	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm
Weight	Weight	4,4 kg	4,4 kg	4,4 kg	4,4 kg

Limitations

Temperature Domestic Hot Water (max)	Temperature Domestic Hot Water (max)	55 °C	55 °C	55 °C	-
Temperature Domestic Hot Water (min - max)	Temperature Domestic Hot Water (min - max)	-	-	-	30 - 55 °C
Temperature (Inlet) (max)	Temperature (Inlet) (max)	55 °C	55 °C	55 °C	25 °C
