Electric Instantaneous Water HeaterelectronicVED pure

Pure hot water comfort for every apartment.

Constant and reliable hot water supply
Low consumption through efficient heating technology
Perfect replacement for apartments
Minimalist, modern design

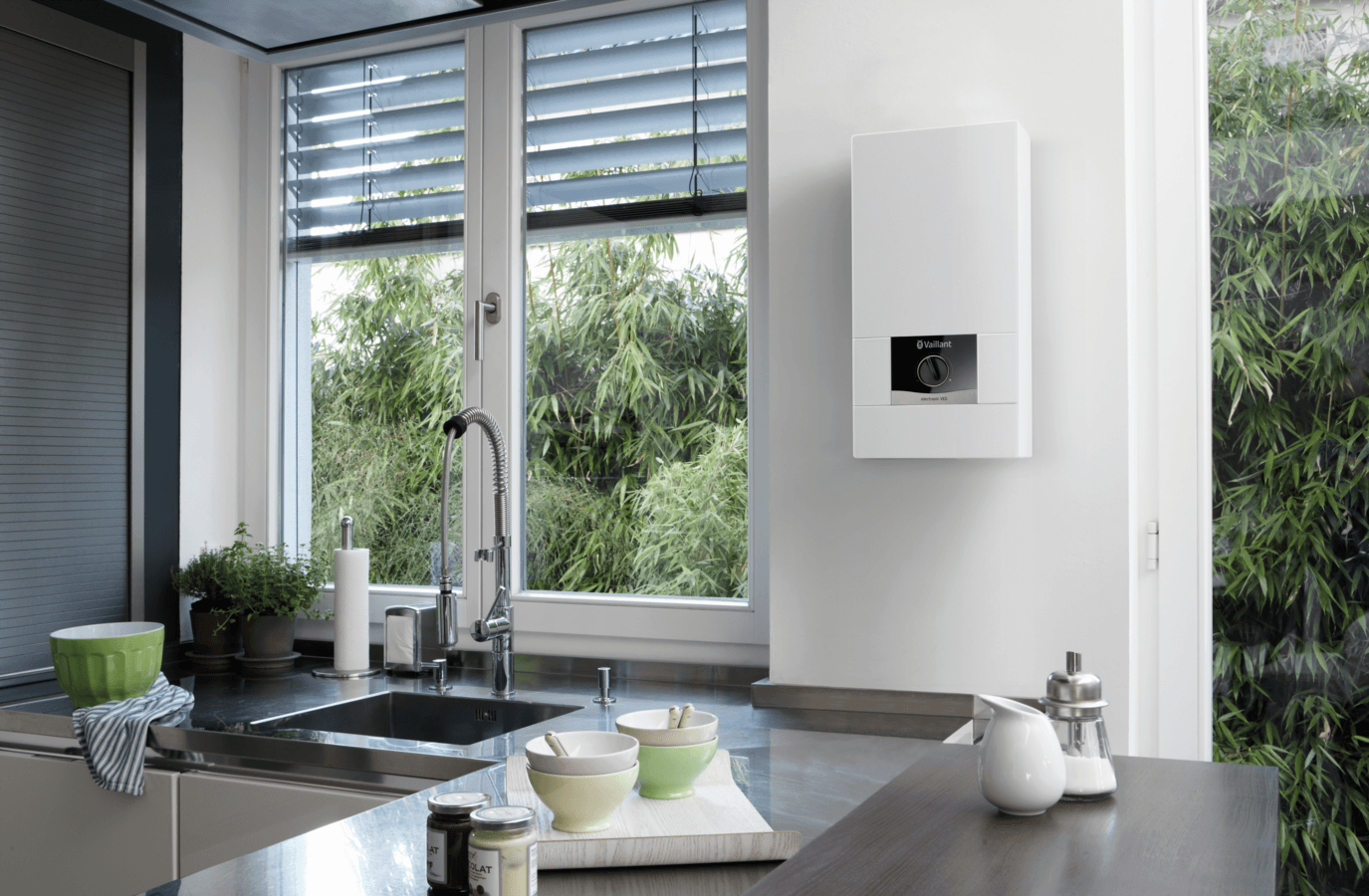

Enjoy constant hot water comfort with the electronicVED pure – your compact and efficient instantaneous water heater. It delivers continuously warm water up to 55 °C (optionally limited to 40 °C by your professional installer) and only consumes electricity when hot water is actually needed. Thanks to precise electronic control, it maintains stable temperatures without pressure fluctuations, providing the comfort you expect. With its slim and modern design, the electronicVED pure easily fits into small bathrooms or kitchens, offering reliable performance in minimal space.

Ideal for:

Hot water

Technical data table overline

Technical data table headline

electronicVED pure
VED E 18/8 INT II	VED E 18/8 BB INT	VED E 21/8 INT II	VED E 21/8 BB INT	VED E 24/8 INT II	VED E 24/8 BB INT	VED E 27/8 INT II	VED E 27/8 BB INT

Power Output and Efficiency

Nominal Heat Output	Nominal Heat Output	18 kW	18 kW	21 kW	21 kW	24 kW	24 kW	27 kW	27 kW
Output Modulation Type	Output Modulation Type	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic

Domestic Hot Water

Continuous Domestic Hot Water Output (Δt = 30 K)	Continuous Domestic Hot Water Output (Δt = 30 K)	8 l/min	8 l/min	8 l/min	8 l/min	8 l/min	8 l/min	10 l/min	10 l/min

Electrical Connection

Electrical Connection Type	Electrical Connection Type	Cable Connection	Cable Connection	Cable Connection	Cable Connection	Cable Connection	Cable Connection	Cable Connection	Cable Connection
Electrical Voltage Supply	Electrical Voltage Supply	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)
IP Rating¹	IP Rating¹	IP25	IP25	IP25	IP25	IP25	IP25	IP25	IP25

Dimensions

Height / Width / Depth	Height / Width / Depth	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm	481 mm / 240 mm / 99 mm
Weight	Weight	4,4 kg	4,4 kg	4,4 kg	4,4 kg	4,4 kg	4,4 kg	4,4 kg	4,4 kg

Limitations

Temperature Domestic Hot Water (max)	Temperature Domestic Hot Water (max)	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	-	-
Temperature Domestic Hot Water (min - max)	Temperature Domestic Hot Water (min - max)	-	-	-	-	-	-	30 - 55 °C	30 - 55 °C
Temperature (Inlet) (max)	Temperature (Inlet) (max)	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	25 °C	25 °C

¹EN 60529

Downloads overline

Downloads headline

Operating Instructions

electronicVED pure Operating & Installation InstructionVED E 18/8 BB INT, VED E 21/8 BB INT, VED E 24/8 BB INT, VED E 27/8 BB INTPDF (2.05 MB)

electronicVED pure Operating & Installation InstructionVED E 18/8 INT II, VED E 21/8 INT II, VED E 24/8 INT II, VED E 27/8 INT IIPDF (2.12 MB)
