Brine-to-Water Heat Pump + DHW CylinderflexoCOMPACT exclusive

Premium heat pump in a compact design.

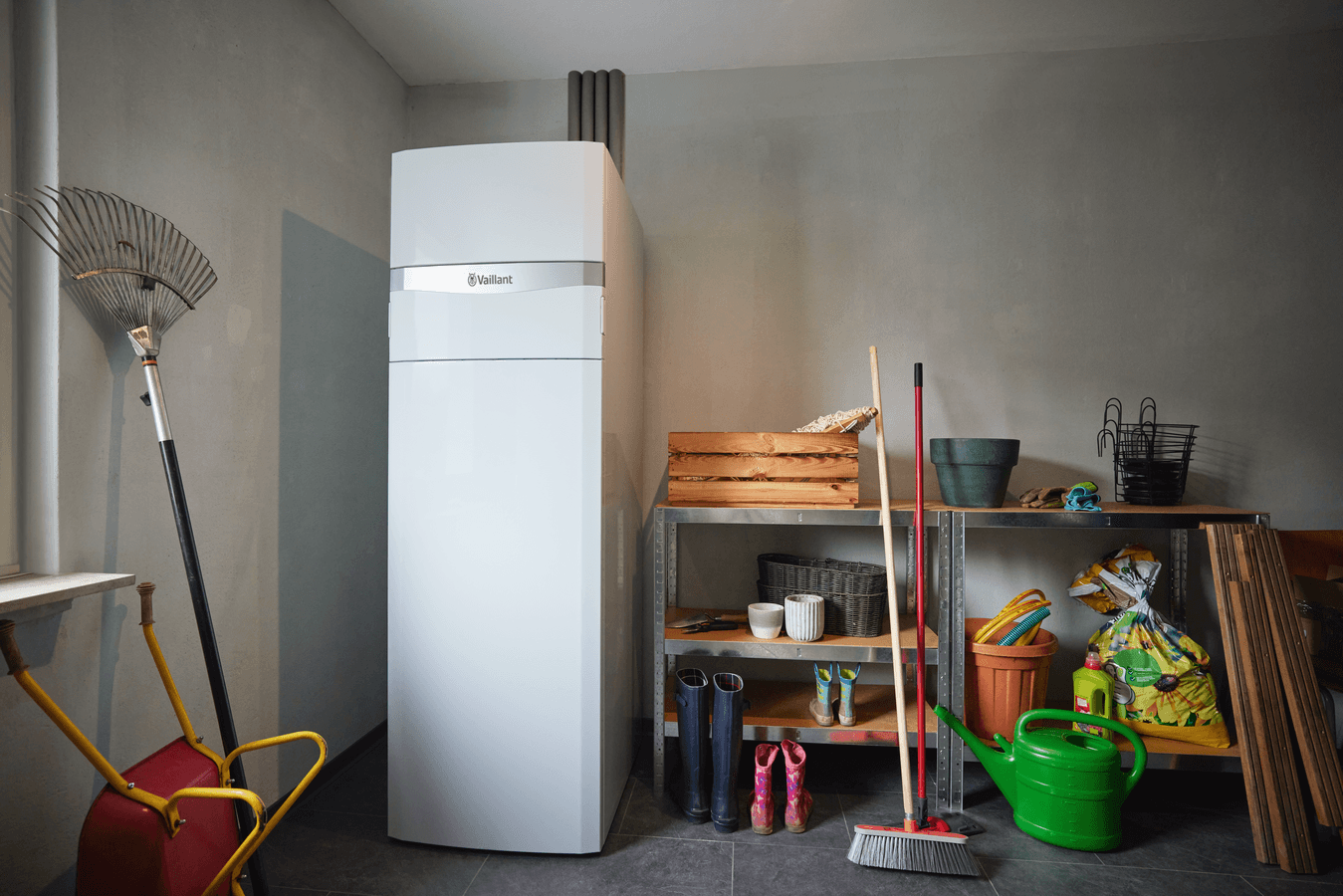

flexoCOMPACT exclusive
  • Space-saving indoor unit with integrated hot water tank
  • Durable quality and reliable operation for years to come
  • Convenient control via smartphone and myVAILLANT App
  • A+++ energy efficiency rating ensures reduced heating costs
  • Passive cooling for a comfortable room temperature on hot summer days
The flexoCOMPACT exclusive gives you heating and hot water in one smart, space-saving system. The 185-liter hot water tank is already built in, providing plenty of hot water for up to four people while fitting easily into small utility rooms. Thanks to its A+++ energy efficiency, app-based control and optional passive cooling for summer, you enjoy sustainable comfort all year round — backed by trusted Vaillant quality.
flexoCOMPACT exclusive
Ideal for:
  • Heating
  • Hot water
  • Cooling
  • Premium solution with integrated hot water tankHot water directly integrated.

    Water droplets falling from a shower head

    Premium solution with integrated hot water tank

    The flexoCOMPACT exclusive combines heating and hot water in one device. A high-quality 185-liter stainless steel tank is already integrated. This saves space and offers comfort for up to four people. With a footprint of only 0.35 m², the device also fits into small utility rooms. Ideal for anyone who doesn't want to compromise on comfort and efficiency despite limited space.

  • More than 150 years of experience in heatingQuality that keeps its promises.

    More than 150 years of experience in heating

    Vaillant products stand for carefully selected features and materials, rigorous testing beyond standard conditions, over 150 years of experience in heating technology, and outstanding service that lasts. Our heat pumps have undergone extensive testing in extreme environments – from freezing temperatures of -25°C to scorching heat of +48°C, and humidity levels reaching 100%. We offer a 10-year material warranty on our high-quality compressor. The result is a product that impresses today and will continue to do so tomorrow. And because true quality means long-term support, for example, we guarantee spare part availability for 15 years after end of production – ensuring peace of mind for years to come.

  • Tailored settings to goAlways in control with myVAILLANT App.

    myVaillant app

    Tailored settings to go

    With the included Internet gateway myVAILLANT connect, you can conveniently track the system’s energy consumption and precisely set desired temperatures and set operation hours with no effort via our app.

  • Energy efficientA+++ energy efficiency rating ensures reduced heating costs.

    Energy efficient

    Tap into nature’s steady warmth with our flexoCOMPACT exclusive ground-source heat pump. The ground stays at a constant temperature of around 10 °C all year round. With our advanced technology, the flexoCOMPACT exclusive transforms this natural resource into efficient heating, even during the chilliest winters. Its A+++ energy efficiency rating (A+++ to D) at 35 °C flow temperature means reduced heating costs and sustainable energy generation. You’re not just protecting the planet; you’re safeguarding your wallet while enjoying premium comfort every day.

  • Cool in summerPassive cooling to reduce the room temperature.

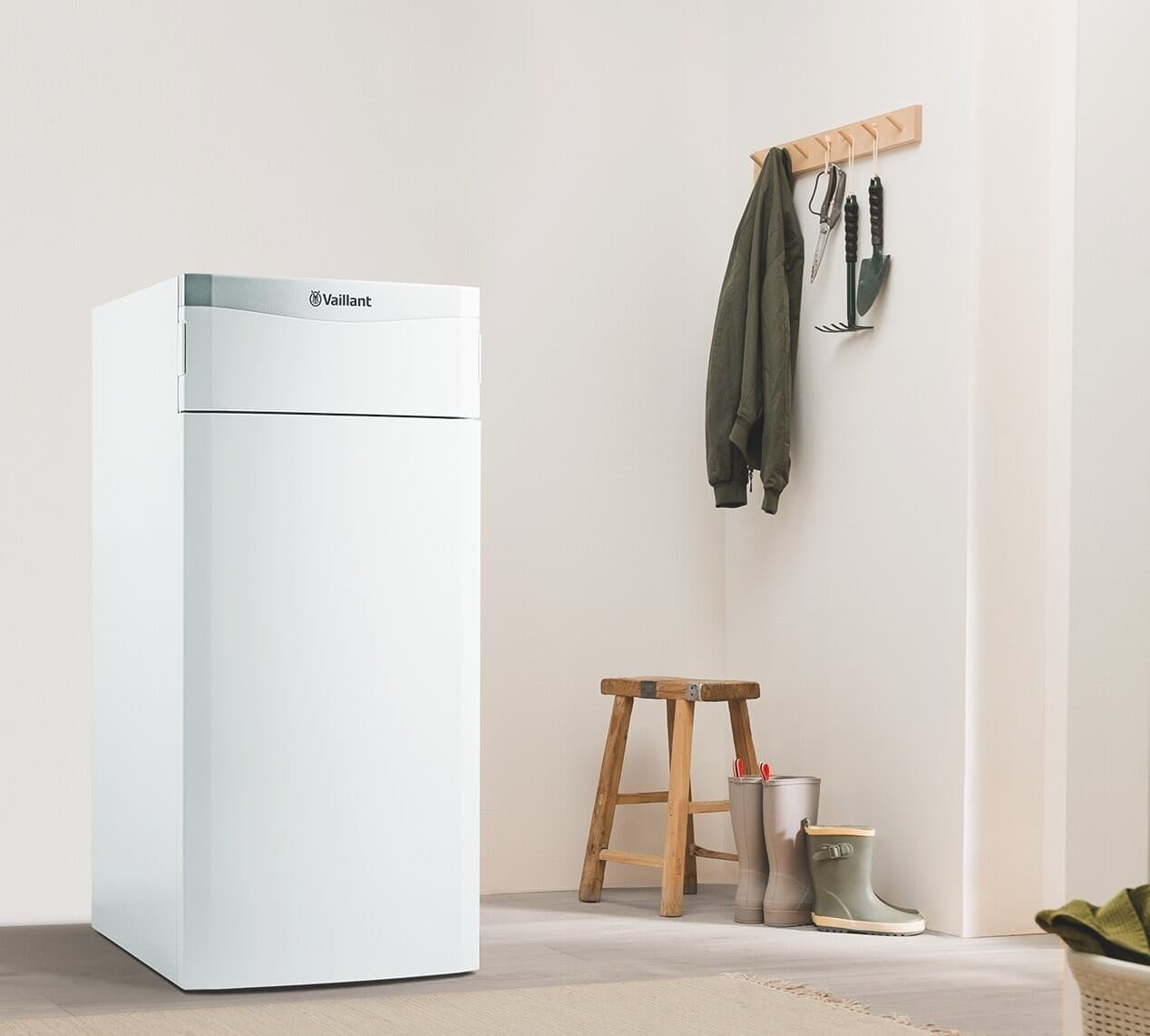

    flexoTHERM exlusive in a utility room

    Cool in summer

    To activate the cooling function, an additional module for passive cooling is required. After installation, the heat is extracted from the living spaces via the underfloor heating and released into the ground via the ground probe. This is an especially cost-efficient cooling method because the heat pump is switched off and only the pumps are running.

Technical data table overline

Technical data table headline

flexoCOMPACT exclusive
VWF 58/4 400V
VWF 88/4 400V
VWF 118/4 400 V
ErP Seasonal Space Heating Efficiency Low Temp ClassErP Seasonal Space Heating Efficiency Low Temp Class +++ D A +++ ++ D A +++ +++ D A +++
ErP Seasonal Space Heating Efficiency High Temp ClassErP Seasonal Space Heating Efficiency High Temp Class ++ D A +++ ++ D A +++ ++ D A +++
ErP Water Heating Energy Efficiency Class Of Combination HeaterErP Water Heating Energy Efficiency Class Of Combination Heater F A + F A + F A +
ErP Seasonal Space Heating Energy Efficiency Low Temp (average)ErP Seasonal Space Heating Energy Efficiency Low Temp (average)184 %202 %201 %
ErP Seasonal Space Heating Energy Efficiency Medium Temp (average)ErP Seasonal Space Heating Energy Efficiency Medium Temp (average)131 %147 %142 %
ErP Water Heating Energy EfficiencyErP Water Heating Energy Efficiency118 %110 %112 %
flexoCOMPACT exclusive
VWF 58/4 400V
VWF 88/4 400V
VWF 118/4 400 V
Cylinder Nominal CapacityCylinder Nominal Capacity171 l171 l171 l
flexoCOMPACT exclusive
VWF 58/4 400V
VWF 88/4 400V
VWF 118/4 400 V
Heat Output / Power Consumption / COP for B0/W35Heat Output / Power Consumption / COP for B0/W355,28 kW / 1,20 kW / 4,418,82 kW / 1,82 kW / 4,8411,18 kW / 2,34 kW / 4,77
Heat Output / Power Consumption / COP for B0/W55Heat Output / Power Consumption / COP for B0/W555,34 kW / 1,85 kW / 2,898,94 kW / 2,78 kW / 3,2211,33 kW / 3,66 kW / 3,10
