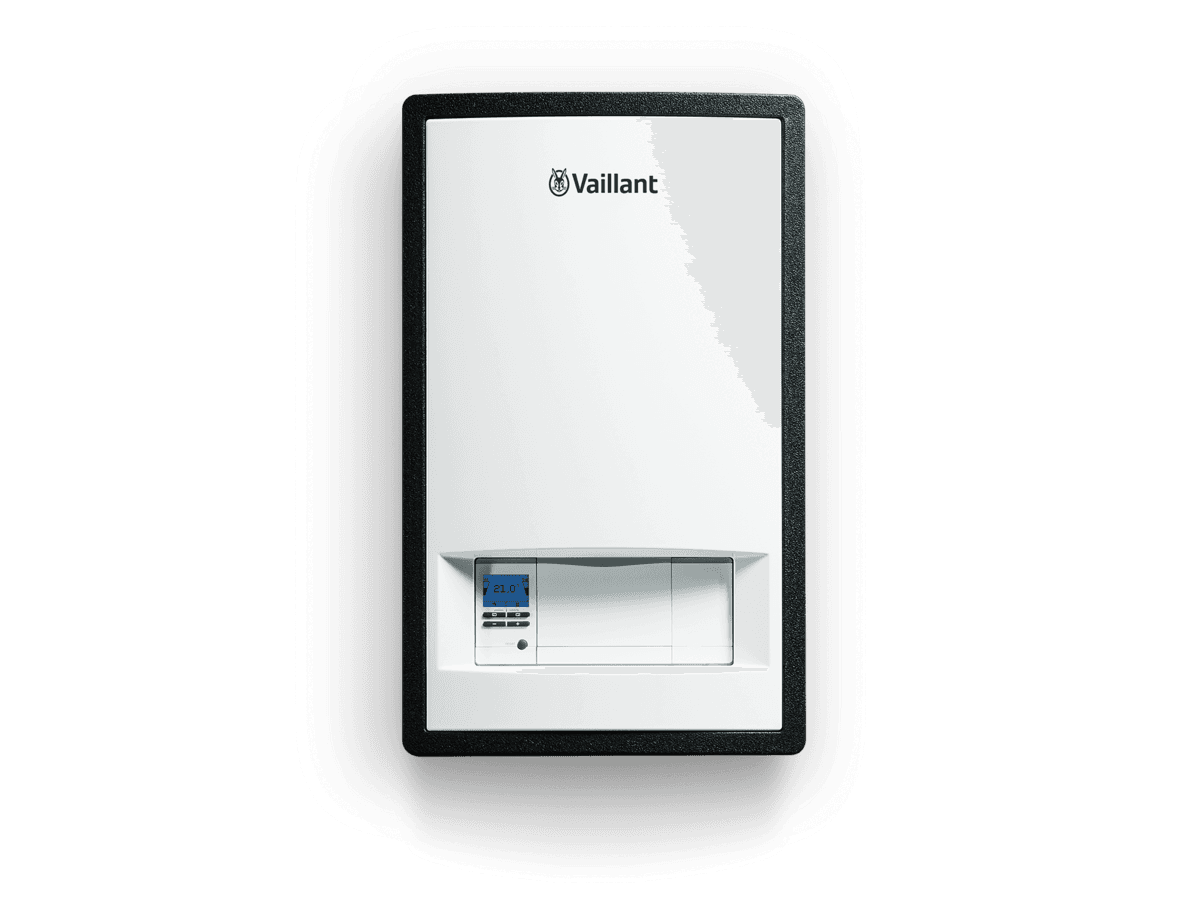

Hydraulic-Station for Air-to-Water Heat PumpHydraulic Station VWZ
Hydraulic station designed to support higher hot water demand.
- Pre-assembled design for quick and straightforward installation
- Supports reliable hot water supply across different household sizes
- Optional connectivity for easy control with the myVaillant app
The hydraulic station provides reliable hot water performance for homes with higher demand. It works with heat pump cylinders from 200 to 500 litres and pairs with Vaillant R290 heat pumps to deliver consistent comfort.
All key components are already integrated, including the expansion vessel and back-up heater. This keeps the system compact, simple to install and ready to use from the start.
All key components are already integrated, including the expansion vessel and back-up heater. This keeps the system compact, simple to install and ready to use from the start.
Ideal for:
- Heating
- Cooling
Technical data table overline
Technical data table headline
Hydraulic Station |
VWZ MEH 97/6 MB3 |
| Electrical Connection Type | Electrical Connection Type | Cable Connection |
|---|---|---|
| Electrical Power Consumption (max) | Electrical Power Consumption (max) | 8,6 kW |
| Electrical Power Consumption for Back-Up Heater (230 V) (max) | Electrical Power Consumption for Back-Up Heater (230 V) (max) | 5,4 kW |
| Electrical Power Consumption for Back-Up Heater (400 V) (max) | Electrical Power Consumption for Back-Up Heater (400 V) (max) | 8,5 kW |
| Electrical Voltage Supply | Electrical Voltage Supply | 230 V (50 Hz), 400 V (50 Hz) |
| IP Rating1 | IP Rating1 | IP10B |
1EN 60529
