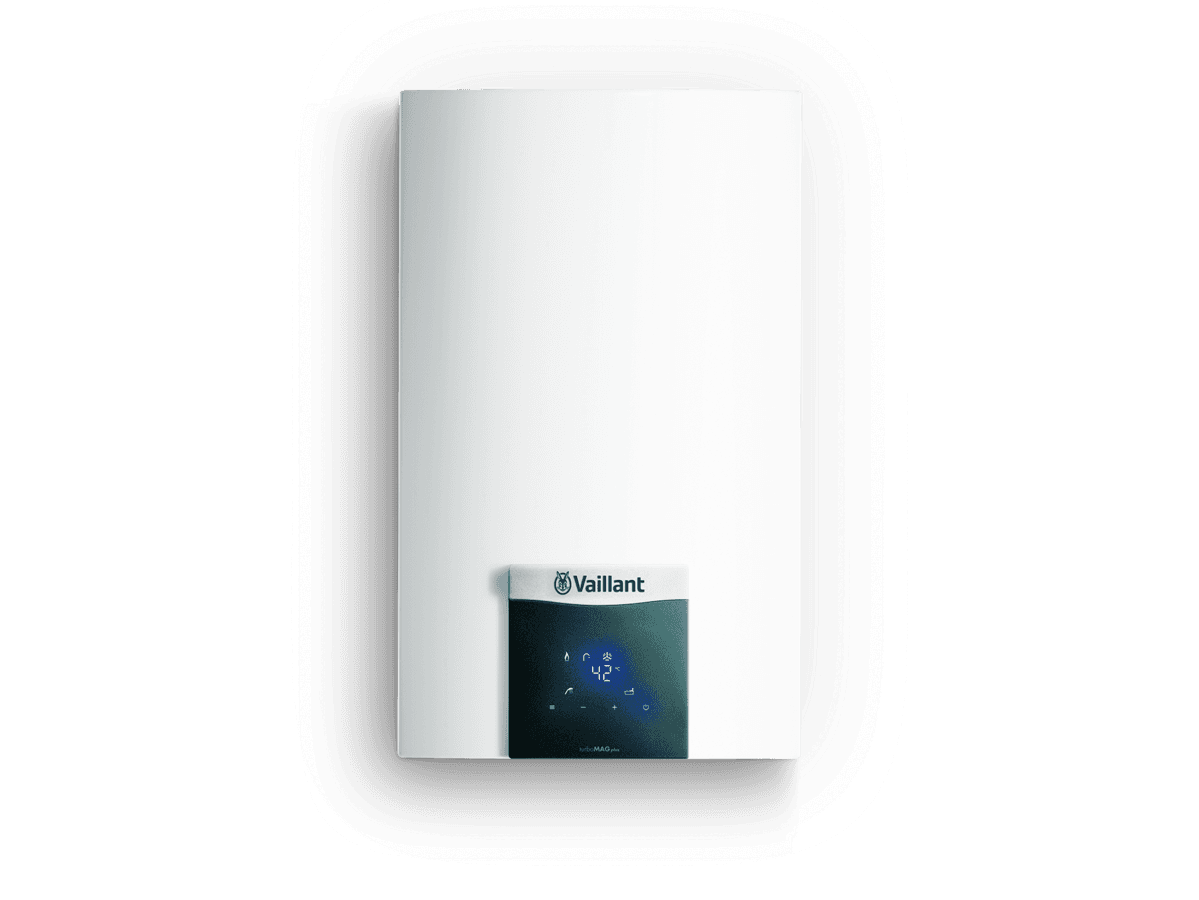

Gas-Fired Instantaneous Water HeaterturboMAG plus

The compact, high-efficiency gas-fired instantaneous water heater.

Low NOx emissions (class 6).
Complete range in compact dimensions – ideal for replacement
1:5 power modulation range
Domestic hot water temperature stability
Flexible connections included
Stylish and intuitive touch screen

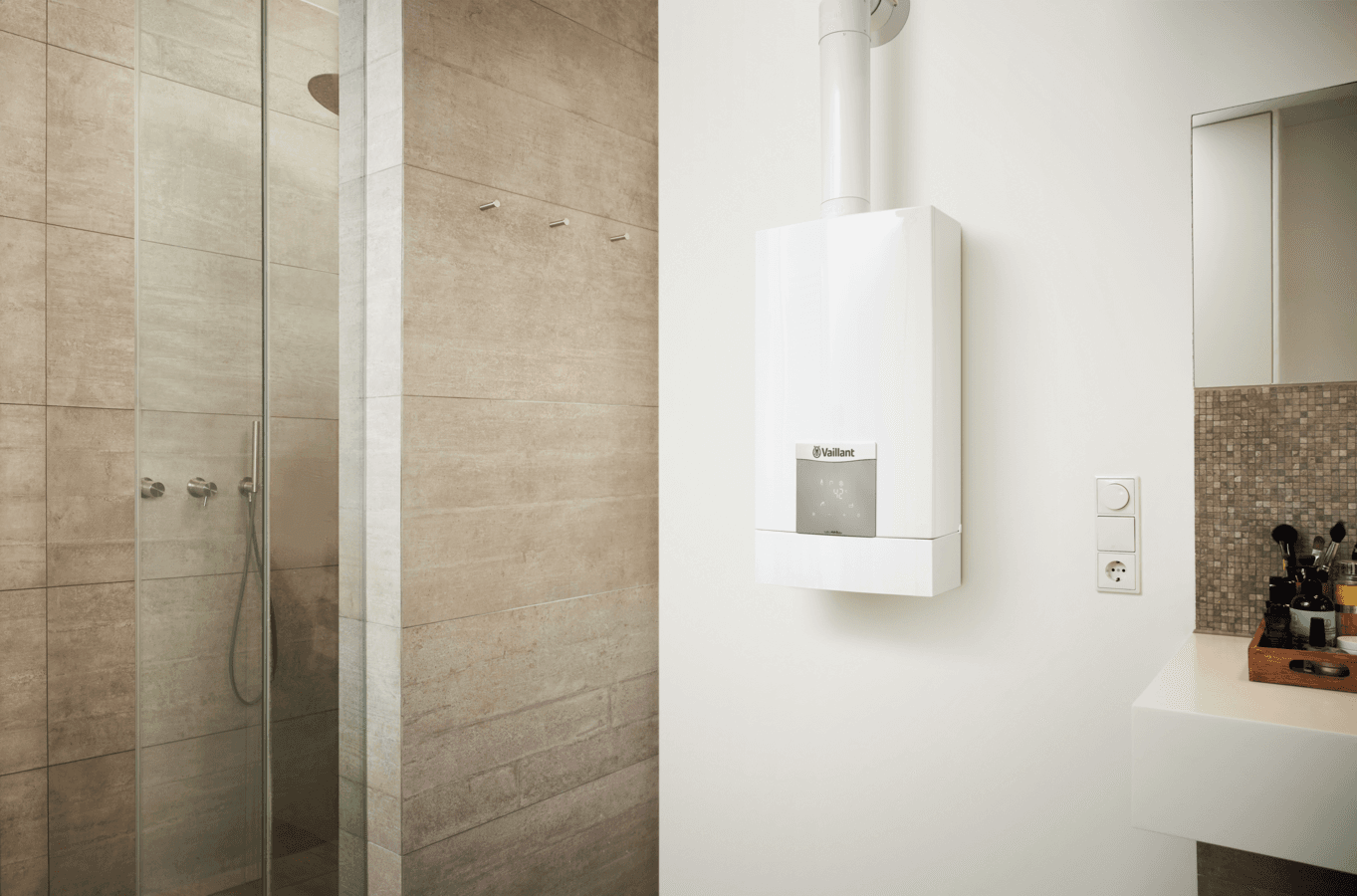

The turboMAG plus gas-fired instantaneous water heater provides hot water at your desired temperature, even under low water pressure. Its compact design allows for easy installation in narrow corridors or small kitchens. Thanks to its intelligent control system, it automatically modulates output and consumes only the amount of gas needed to heat the water being drawn. No gas is wasted, even in standby mode, thanks to automatic start-up management. The turboMAG plus achieves an energy efficiency rating of A on a scale from A+ to F.

Ideal for:

Hot water

Technical data table overline

Technical data table headline

turboMAG plus
MAG 125/1-5 RT(P)	MAG 125/1-5 RT(H-ES/PT)	MAG 155/1-5 RT(H-ES/PT)	MAG 155/1-5 RT(P-ES/PT)	MAG 175/1-5 RT(H-ES/PT)	MAG 175/1-5 RT(P-ES/PT)

ErP

ErP Water Heater Energy Efficiency Class Of Water Heater	ErP Water Heater Energy Efficiency Class Of Water Heater
ErP Water Heating Energy Efficiency	ErP Water Heating Energy Efficiency	77 %	77 %	80 %	80 %	80 %	80 %

turboMAG plus
MAG 125/1-5 RT(P)	MAG 125/1-5 RT(H-ES/PT)	MAG 155/1-5 RT(H-ES/PT)	MAG 155/1-5 RT(P-ES/PT)	MAG 175/1-5 RT(H-ES/PT)	MAG 175/1-5 RT(P-ES/PT)

Power Output and Efficiency

Heat Output (G31) (min - max)	Heat Output (G31) (min - max)	3,54 - 17,94 kW	-	-	4,48 - 23,28 kW	-	4,8 - 26,4 kW
Heat Output (G20) (min - max)	Heat Output (G20) (min - max)	-	3,54 - 17,94 kW	4,48 - 23,28 kW	-	4,8 - 26,4 kW	-
Gas Flow Rate, G31	Gas Flow Rate, G31	0,94 m³/h	-	-	1,19 m³/h	-	1,35 m³/h
Gas Flow Rate, G20	Gas Flow Rate, G20	-	2,43 m³/h	3,08 m³/h	-	3,49 m³/h	-

Combustion

Flue Gas Temperature (min - max)	Flue Gas Temperature (min - max)	110 - 260 °C	110 - 260 °C	110 - 260 °C	110 - 260 °C	110 - 260 °C	110 - 260 °C

Domestic Hot Water

Continuous Domestic Hot Water Output (Δt = 50 K) (min - max)	Continuous Domestic Hot Water Output (Δt = 50 K) (min - max)	2,5 - 6 l/min	2,5 - 6 l/min	2,5 - 7,5 l/min	2,5 - 7,5 l/min	2,5 - 8,5 l/min	2,5 - 8,5 l/min

Connections

Connection Dimension Combustion Air, Flue Gas	Connection Dimension Combustion Air, Flue Gas	Ø 60/100 mm	Ø 60/100 mm	Ø 60/100 mm	Ø 60/100 mm	Ø 60/100 mm	Ø 60/100 mm
Connection Dimension Cold Water, Domestic Hot Water	Connection Dimension Cold Water, Domestic Hot Water	G ½″	G ½″	G ½″	G ½″	G ½″	G ½″
Connection Dimension Natural Gas	Connection Dimension Natural Gas	R ¾″	R ¾″	R ¾″	R ¾″	R ¾″	R ¾″

Dimensions

Height / Width / Depth	Height / Width / Depth	580 mm / 350 mm / 193 mm	580 mm / 350 mm / 193 mm	580 mm / 350 mm / 193 mm	580 mm / 350 mm / 193 mm	580 mm / 350 mm / 193 mm	580 mm / 350 mm / 193 mm
Weight	Weight	15 kg	15 kg	17 kg	17 kg	19 kg	19 kg

Limitations

Domestic Hot Water Temperature (min - max)	Domestic Hot Water Temperature (min - max)	38 - 60 °C	38 - 60 °C	38 - 60 °C	38 - 60 °C	38 - 60 °C	38 - 60 °C

Conformity-IDs

Gas Category	Gas Category	II2H3P	II2H3P	II2H3P	II2H3P	II2H3P	II2H3P
CE PIN	CE PIN	CE-2806DP0303	CE-2806DP0303	CE-2806DP0303	CE-2806DP0303	CE-2806DP0303	CE-2806DP0303
