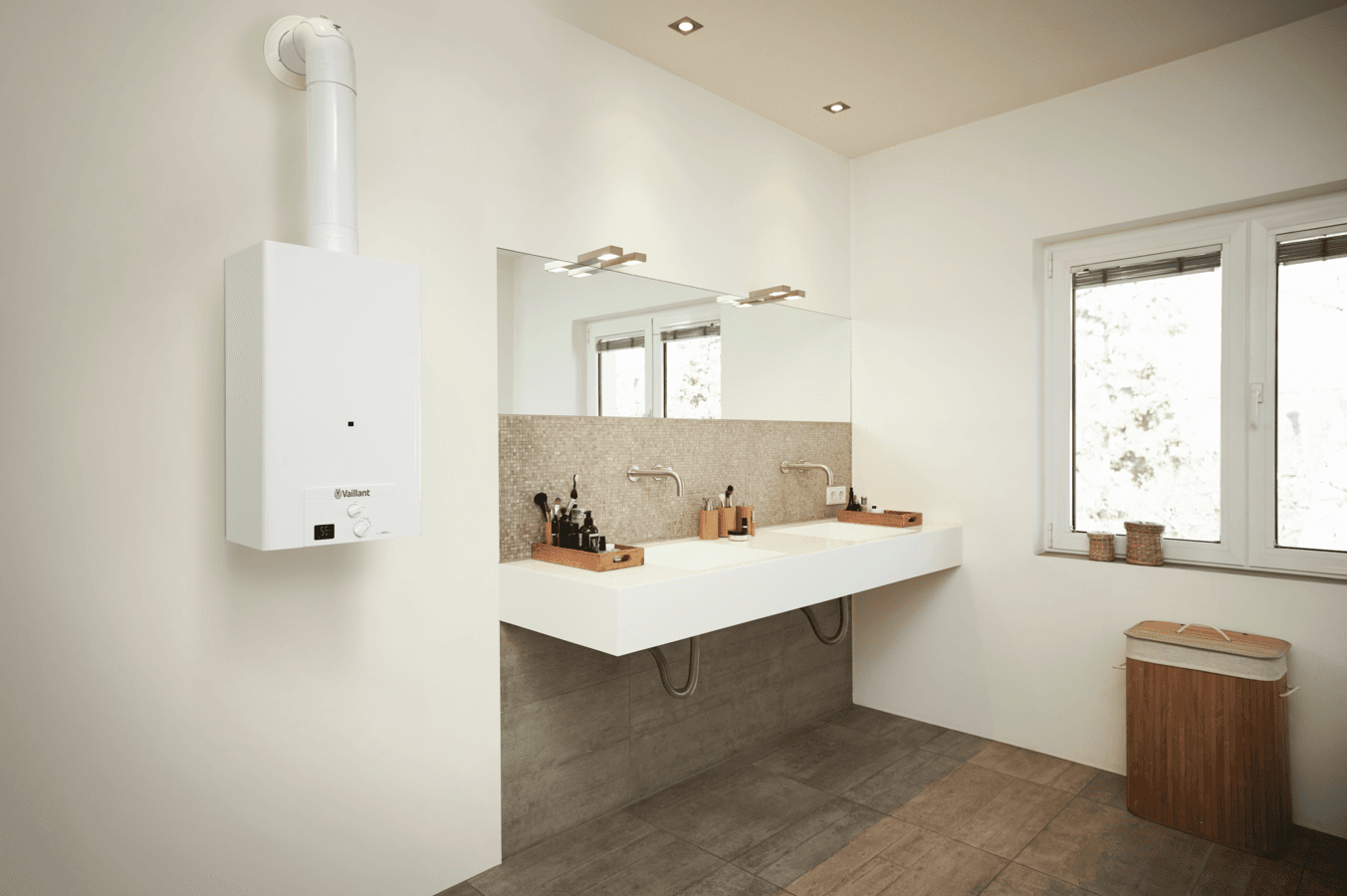

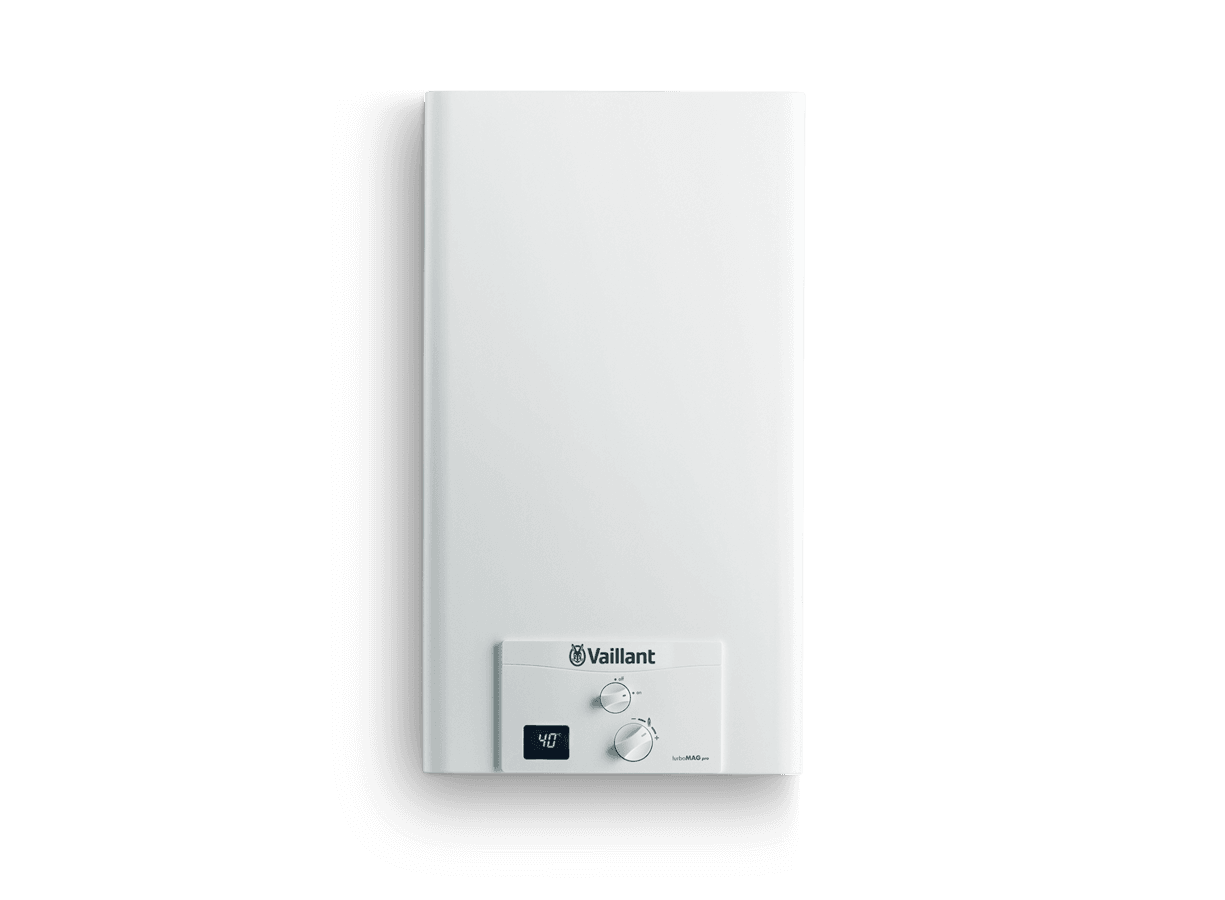

Gas-Fired Instantaneous Water HeaterturboMAG pro

Instant unlimited hot water production in a sealed appliance.

Instant hot water production without storage
Precise temperature regulation at inlet and outlet
No combustion air from the room
Energy-efficient operation with wide modulation range
Ignition only when hot water is required
Easy day-to-day use

turboMAG pro is the ideal replacement for atmospheric devices, for the production of instant domestic hot water with a gas-powered appliance. Thanks to its sealed combustion chamber, turboMAG pro ensures there is no risk of inhaling gases inside the housing. turboMAG pro is equipped with the most advanced combustion technology: it does not consume gas in standby mode. This means lower NOx emissions. And thanks to its modulating control, it guarantees optimal combustion and perfect thermal stability for maximum energy savings.

Ideal for:

Hot water

Technical data table overline

Technical data table headline

turboMAG pro
MAG 125/1 3R (H-PT)	MAG 125/1 3R (P/B-PT)	MAG 145/1 3R (H-PT)	MAG 145/1 3R (P/B)

ErP

ErP Water Heater Energy Efficiency Class Of Water Heater	ErP Water Heater Energy Efficiency Class Of Water Heater
ErP Water Heating Energy Efficiency	ErP Water Heating Energy Efficiency	83 %	83 %	76 %	83 %

turboMAG pro
MAG 125/1 3R (H-PT)	MAG 125/1 3R (P/B-PT)	MAG 145/1 3R (H-PT)	MAG 145/1 3R (P/B)

Power Output and Efficiency

Heat Output (G20) (min - max)	Heat Output (G20) (min - max)	8,2 - 22,0 kW	-	8,2 - 23,7 kW	-
Heat Output (G30, G31) (min - max)	Heat Output (G30, G31) (min - max)	-	8,4 - 19,8 kW	-	8,4 - 21,1 kW
Gas Flow Rate, G20	Gas Flow Rate, G20	2,62 m³/h	-	2,01 m³/h	-
Gas Flow Rate, G30	Gas Flow Rate, G30	-	0,67 kg/h	-	0,75 kg/h

Combustion

Flue Gas Mass Flow Rate (G20) (min - max)	Flue Gas Mass Flow Rate (G20) (min - max)	12,01 - 15,89 g/s	-	12,01 - 15,81 g/s	-
Flue Gas Mass Flow Rate (G30, G31) (min - max)	Flue Gas Mass Flow Rate (G30, G31) (min - max)	-	12,54 - 15,76 g/s	-	12,20 - 15,14 g/s
Flue Gas Temperature (min - max)	Flue Gas Temperature (min - max)	118 - 196 °C	114 - 185 °C	117 - 205 °C	114 - 186 °C

Domestic Hot Water

Continuous Domestic Hot Water Output (Δt = 50 K) (min - max)	Continuous Domestic Hot Water Output (Δt = 50 K) (min - max)	3,7 - 6 l/min	3,7 - 6 l/min	3,7 - 7 l/min	3,7 - 7 l/min

Connections

Connection Dimension Cold Water, Domestic Hot Water	Connection Dimension Cold Water, Domestic Hot Water	½″	½″	½″	½″
Connection Dimension Natural Gas	Connection Dimension Natural Gas	¾″	¾″	¾″	¾″
Connection Dimension Combustion Air, Flue Gas	Connection Dimension Combustion Air, Flue Gas	Ø 60/100 mm	Ø 60/100 mm	Ø 60/100 mm	Ø 60/100 mm

Dimensions

Height / Width / Depth	Height / Width / Depth	627 mm / 348 mm / 240 mm	627 mm / 348 mm / 240 mm	627 mm / 348 mm / 240 mm	627 mm / 348 mm / 240 mm
Weight	Weight	20 kg	20 kg	20 kg	20 kg

Conformity-IDs

Gas Category	Gas Category	II2H3+	II2H3+	II2H3+	II2H3+
CE PIN	CE PIN	CE-0476CS2119	CE-0476CS2119	CE-0476CS2119	CE-0476CS2119
