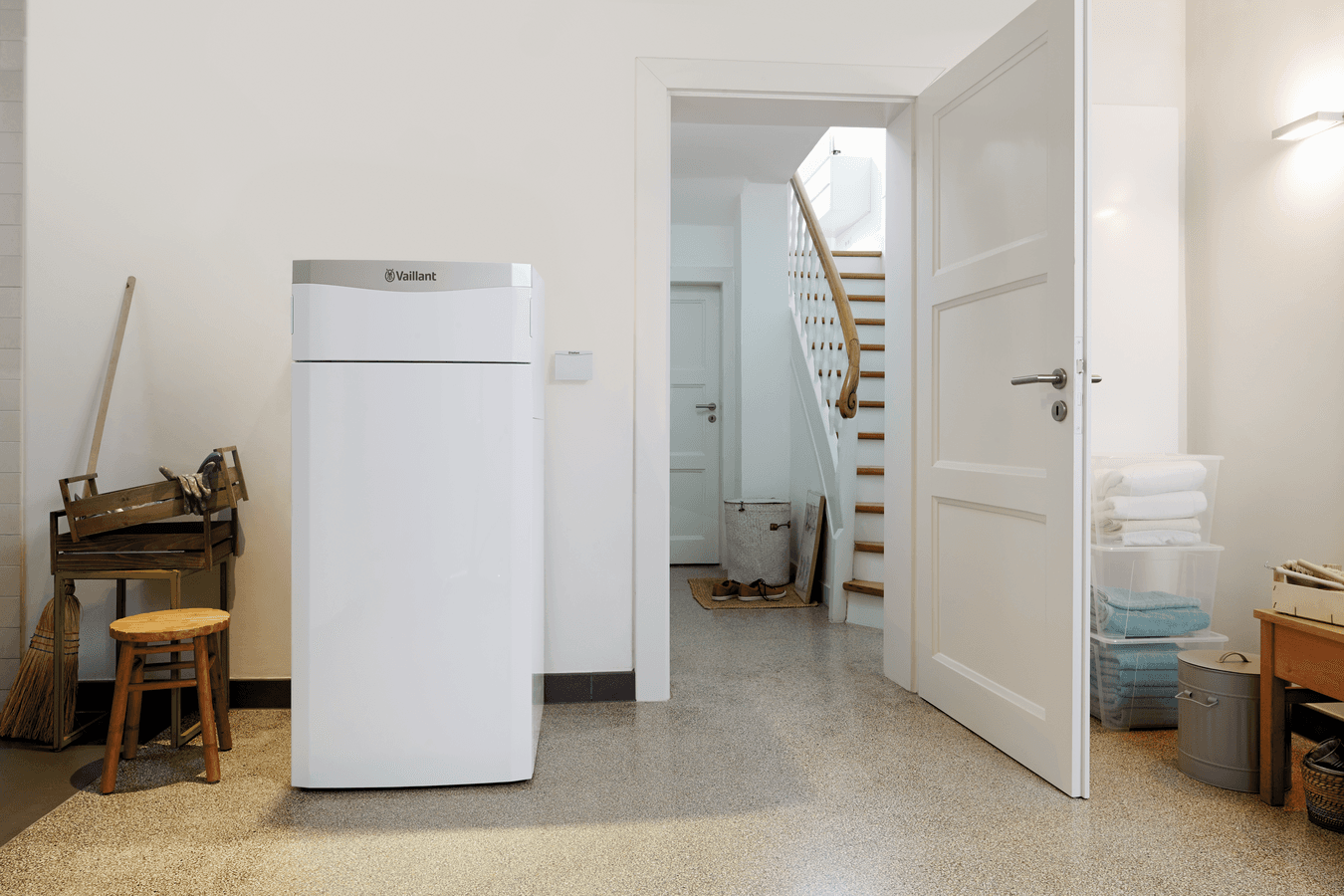

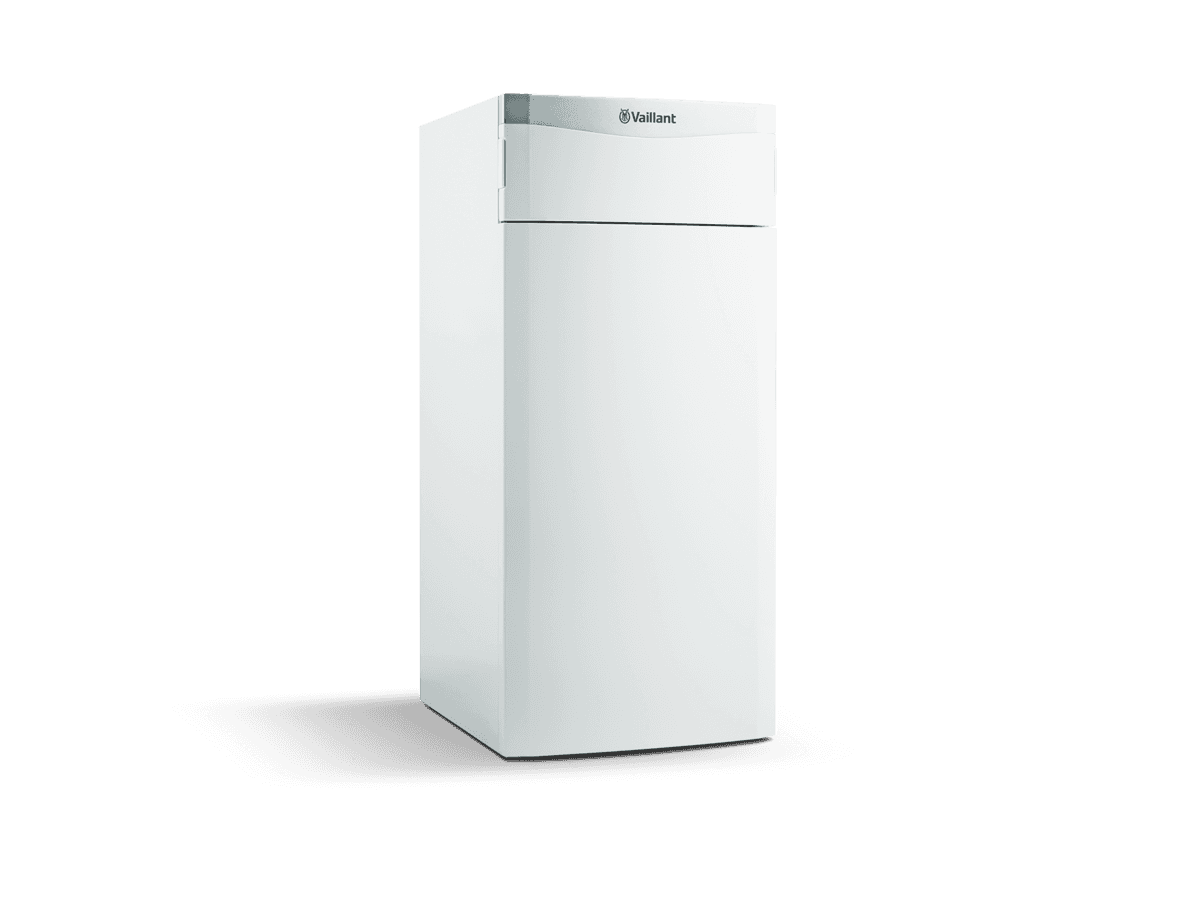

Flexible Heat Source Heat PumpflexoTHERM exclusive VWF 230V

The versatile premium heat pump.

Flexible choice of different heat energy sources
Very quiet thanks to integrated Vaillant Sound Safe System
Quality components made in Germany with high degree on recycling materials
Including internet module for conviently energy management via app
Optional use of flexoCOMPACT exclusive with integrated hot water storage tank

One heat pump, lots of options: Our flexoTHERM exclusive can flexibly use the environmental energy stored in the earth, air and groundwater depending on your wishes and the conditions on site. Hot water preparation can also be tailored precisely to your needs with a suitable hot water cylinder or a combination with solar thermal. Thanks to the integrated Sound Safe System, the heat pump operates very quiet. It ensures that all noise remains inside the unit and is decoupled from the outside.

Ideal for:

Heating
Hot water
Cooling

Technical data table overline

Technical data table headline

flexoTHERM exclusive
VWF 57/4 230 V	VWF 87/4 230 V	VWF 117/4 230 V

ErP

ErP Seasonal Space Heating Efficiency Low Temp Class	ErP Seasonal Space Heating Efficiency Low Temp Class
ErP Seasonal Space Heating Efficiency High Temp Class	ErP Seasonal Space Heating Efficiency High Temp Class
ErP Seasonal Space Heating Energy Efficiency Low Temp (average)	ErP Seasonal Space Heating Energy Efficiency Low Temp (average)	176 %	167 %	183 %
ErP Seasonal Space Heating Energy Efficiency Medium Temp (average)	ErP Seasonal Space Heating Energy Efficiency Medium Temp (average)	128 %	129 %	136 %

flexoTHERM exclusive
VWF 57/4 230 V	VWF 87/4 230 V	VWF 117/4 230 V

Electrical Connection

Electrical Power Consumption incl. Electrical Backup Heater (max)	Electrical Power Consumption incl. Electrical Backup Heater (max)	11,5 kW	12,8 kW	14,1 kW
Electrical Power Consumption for Back-Up Heater (max)	Electrical Power Consumption for Back-Up Heater (max)	9,0 kW	9,0 kW	9,0 kW
Electrical Voltage Supply, Control	Electrical Voltage Supply, Control	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)
Electrical Voltage Supply, Back-Up Heater	Electrical Voltage Supply, Back-Up Heater	230 V (50 Hz)	230 V (50 Hz)	230 V (50 Hz)
Fuse Type	Fuse Type	3x25 A	3x25 A	3x25 A

Operation Fluids

Content Heating Water	Content Heating Water	3,2 l	3,9 l	4,4 l
Content Heat Transfer Fluid	Content Heat Transfer Fluid	2,5 l	3,1 l	3,6 l

Connections

Connection Dimension Heating (Flow, Return)	Connection Dimension Heating (Flow, Return)	G 1 ½″	G 1 ½″	G 1 ½″
Connection Dimension Heat Source (Flow, Return)	Connection Dimension Heat Source (Flow, Return)	G 1 ½″	G 1 ½″	G 1 ½″

Dimensions

Height / Width / Depth	Height / Width / Depth	1.183 mm / 595 mm / 600 mm	1.183 mm / 595 mm / 600 mm	1.183 mm / 595 mm / 600 mm
Weight (Unpackaged, Net)	Weight (Unpackaged, Net)	145 kg	160 kg	168 kg
Weight Ready for Operation	Weight Ready for Operation	151 kg	167 kg	175 kg

Limitations

Flow Temperature (Heating Mode) (min - max)	Flow Temperature (Heating Mode) (min - max)	25 - 65 °C	25 - 65 °C	25 - 65 °C
Flow Temperature (With Back-Up Heater) (Heating Mode) (min - max)	Flow Temperature (With Back-Up Heater) (Heating Mode) (min - max)	25 - 75 °C	25 - 75 °C	25 - 75 °C
Operating Pressure Heat Source (max)	Operating Pressure Heat Source (max)	3 bar	3 bar	3 bar
Operating Pressure Heating Circuit (max)	Operating Pressure Heating Circuit (max)	3 bar	3 bar	3 bar
In-Rush Current Heat Pump (With Limiter)	In-Rush Current Heat Pump (With Limiter)	15,0 A	19,0 A	22,0 A
Current Consumption Heat Pump	Current Consumption Heat Pump	20,2 A	21,2 A	24,4 A
Current Consumption Compressor, Control, Back-Up Heater	Current Consumption Compressor, Control, Back-Up Heater	20,2 A	21,2 A	24,4 A
Current Consumption Compressor, Control	Current Consumption Compressor, Control	9 A	10 A	13,2 A
Current Consumption Control, Back-Up Heater	Current Consumption Control, Back-Up Heater	15,2 A	15,2 A	15,2 A
Volume Installation Room (acc. to EN 378) (min)	Volume Installation Room (acc. to EN 378) (min)	3,41 m³	5,45 m³	5,68 m³
Pipe Distance Heat Transfer Fluid (DN 40) (max)	Pipe Distance Heat Transfer Fluid (DN 40) (max)	10 m	10 m	10 m
Pipe Distance Heat Transfer Fluid (DN 50) (max)	Pipe Distance Heat Transfer Fluid (DN 50) (max)	30 m	30 m	30 m

flexoTHERM exclusive
VWF 57/4 230 V	VWF 87/4 230 V	VWF 117/4 230 V

Power Output and Efficiency

Heat Output / Power Consumption / COP for B0/W35	Heat Output / Power Consumption / COP for B0/W35	5,28 kW / 1,20 kW / 4,41	8,82 kW / 1,82 kW / 4,84	11,18 kW / 2,34 kW / 4,77
Heat Output / Power Consumption / COP for B0/W55	Heat Output / Power Consumption / COP for B0/W55	5,34 kW / 1,85 kW / 2,89	8,94 kW / 2,78 kW / 3,22	11,33 kW / 3,00 kW / 3,10

Electrical Connection

Electrical Connection Type	Electrical Connection Type	Cable Connection	Cable Connection	Cable Connection
Electrical Power Consumption for Heating Pump for B0/W35, 3 K Spread	Electrical Power Consumption for Heating Pump for B0/W35, 3 K Spread	25 W	30 W	45 W
Electrical Power Consumption for Brine Pump for B0/W35	Electrical Power Consumption for Brine Pump for B0/W35	44 W	62 W	64 W
Electrical Voltage Supply, Heat Pump Compressor Unit	Electrical Voltage Supply, Heat Pump Compressor Unit	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)

Refrigerant

Refrigerant	Refrigerant	R410a	R410a	R410a
GWP	GWP	2.088	2.088	2.088
CO₂ Equivalent	CO₂ Equivalent	3,1 t	5,01 t	5,22 t
Refrigerant Quantity	Refrigerant Quantity	1,50 kg	2,4 kg	2,5 kg

Hydraulics

Pump Mass Flow Rate, Heating, 5 K Spread	Pump Mass Flow Rate, Heating, 5 K Spread	920 l/h	1.530 l/h	1.920 l/h
Pump Mass Flow Rate, Heat Source for B0/W35, 3 K Spread	Pump Mass Flow Rate, Heat Source for B0/W35, 3 K Spread	1.290 l/h	2.320 l/h	3.000 l/h

Noise Emission

Sound Power Level at B0/W35	Sound Power Level at B0/W35	39,8 dB(A)	42,4 dB(A)	45,2 dB(A)
Sound Power Level at B0/W55	Sound Power Level at B0/W55	40,6 dB(A)	49,9 dB(A)	47,2 dB(A)

flexoTHERM exclusive
VWF 57/4 230 V	VWF 87/4 230 V	VWF 117/4 230 V

Power Output and Efficiency

Heat Output / Power Consumption / COP for A-7/W35	Heat Output / Power Consumption / COP for A-7/W35	4,34 kW / 1,35 kW / 3,2	6,45 kW / 2,01 kW / 3,21	8,4 kW / 2,85 kW / 2,94
Heat Output / Power Consumption / COP for A2/W35	Heat Output / Power Consumption / COP for A2/W35	5,63 kW / 1,36 kW / 4,14	7,79 kW / 1,99 kW / 3,91	10,27 kW / 2,68 kW / 3,83
Heat Output / Power Consumption / COP for A7/W35	Heat Output / Power Consumption / COP for A7/W35	6,16 kW / 1,31 kW / 4,69	8,74 kW / 1,91 kW / 4,58	11,45 kW / 2,50 kW / 4,58
Heat Output / Power Consumption / COP for A10/W35	Heat Output / Power Consumption / COP for A10/W35	6,42 kW / 1,30 kW / 4,94	8,98 kW / 1,89 kW / 4,74	12,12 kW / 2,52 kW / 4,80
Heat Output / Power Consumption / COP for A7/W55	Heat Output / Power Consumption / COP for A7/W55	6,09 kW / 1,97 kW / 3,09	9,45 kW / 2,95 kW / 3,21	12,20 kW / 3,84 kW / 3,17
Cooling Output / Power Consumption / EER for A35/W18	Cooling Output / Power Consumption / EER for A35/W18	6,53 kW / 1,59 kW / 4,12	8,52 kW / 2,73 kW / 3,12	12,02 kW / 3,67 kW / 3,28

Electrical Connection

Electrical Power Consumption for Heating Pump for A7/W35, 5 K Spread	Electrical Power Consumption for Heating Pump for A7/W35, 5 K Spread	28 W	36 W	50 W
Electrical Voltage Supply, Heat Pump Compressor Unit	Electrical Voltage Supply, Heat Pump Compressor Unit	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)

Refrigerant

Refrigerant	Refrigerant	R410a	R410a	R410a
GWP	GWP	2.088	2.088	2.088
CO₂ Equivalent	CO₂ Equivalent	3,1 t	5,01 t	5,22 t
Refrigerant Quantity	Refrigerant Quantity	1,5 kg	2,4 kg	2,5 kg

Hydraulics

Pump Mass Flow Rate, Heating	Pump Mass Flow Rate, Heating	1.070 l/h	1.510 l/h	1.990 l/h

Noise Emission

Sound Power Level at A7/W35	Sound Power Level at A7/W35	40,3 dB(A)	45,8 dB(A)	44,4 dB(A)
Sound Power Level at A7/W55	Sound Power Level at A7/W55	40,9 dB(A)	52,7 dB(A)	46,1 dB(A)

flexoTHERM exclusive
VWF 57/4 230 V	VWF 87/4 230 V	VWF 117/4 230 V

Power Output and Efficiency

Heat Output / Power Consumption / COP for W10/W35	Heat Output / Power Consumption / COP for W10/W35	6,32 kW / 1,35 kW / 4,70	9,94 kW / 1,92 kW / 5,17	12,88 kW / 2,47 kW / 5,22
Heat Output / Power Consumption / COP for W10/W55	Heat Output / Power Consumption / COP for W10/W55	6,23 kW / 2,12 kW / 2,94	10,28 kW / 2,96 kW / 3,47	13,22 kW / 3,93 kW / 3,36

Electrical Connection

Electrical Power Consumption for Heating Pump for W10/W35, 5 K Spread	Electrical Power Consumption for Heating Pump for W10/W35, 5 K Spread	35 W	45 W	55 W
Electrical Voltage Supply, Heat Pump Compressor Unit	Electrical Voltage Supply, Heat Pump Compressor Unit	400 V (50 Hz)	400 V (50 Hz)	400 V (50 Hz)

Refrigerant

Refrigerant	Refrigerant	R410a	R410a	R410a
GWP	GWP	2.088	2.088	2.088
CO₂ Equivalent	CO₂ Equivalent	3,1 t	5,01 t	5,22 t
Refrigerant Quantity	Refrigerant Quantity	1,5 kg	2,4 kg	2,5 kg
